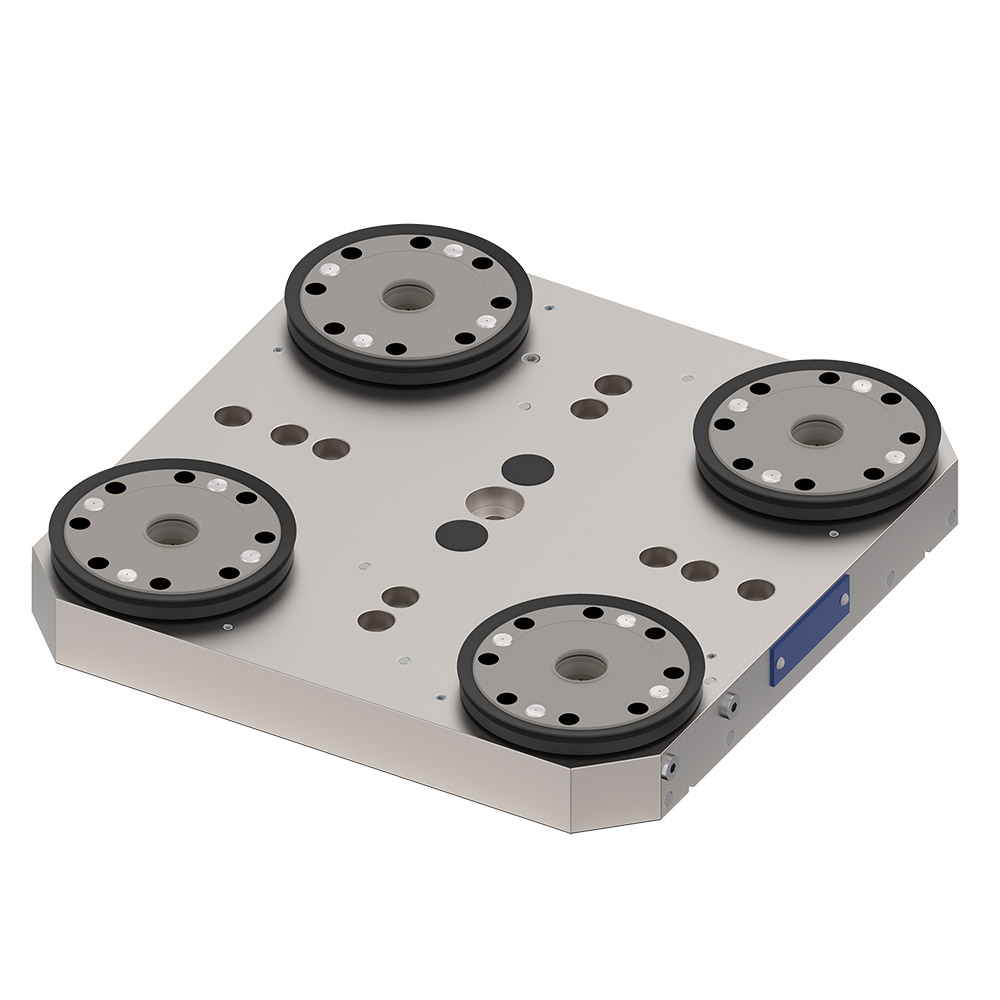

4-fold Baseplate, with 4 sealings, DelphinCompact

$0.05

For automated and manual applications. Without AirDisc: with 2 fittings for side connection.

9999 in stock

SKU: S252251 Category:

Description

  • cc 250 mm
  • Clamping force with 6 bar turbo pressure: up to 60 kN
  • Holding force: 240 kN
  • Release pressure: 4-30 bar hydraulic or pneumatic
  • Lift-up function pneumatic: 600 kg at 6 bar, lift-up 1 mm
  • Lift-up function hydraulic: 4 000 kg at 30 bar, lift-up 1 mm
  • Repeatability: within 0.003 mm
  • Material: stainless steel
