Description

FT-02465

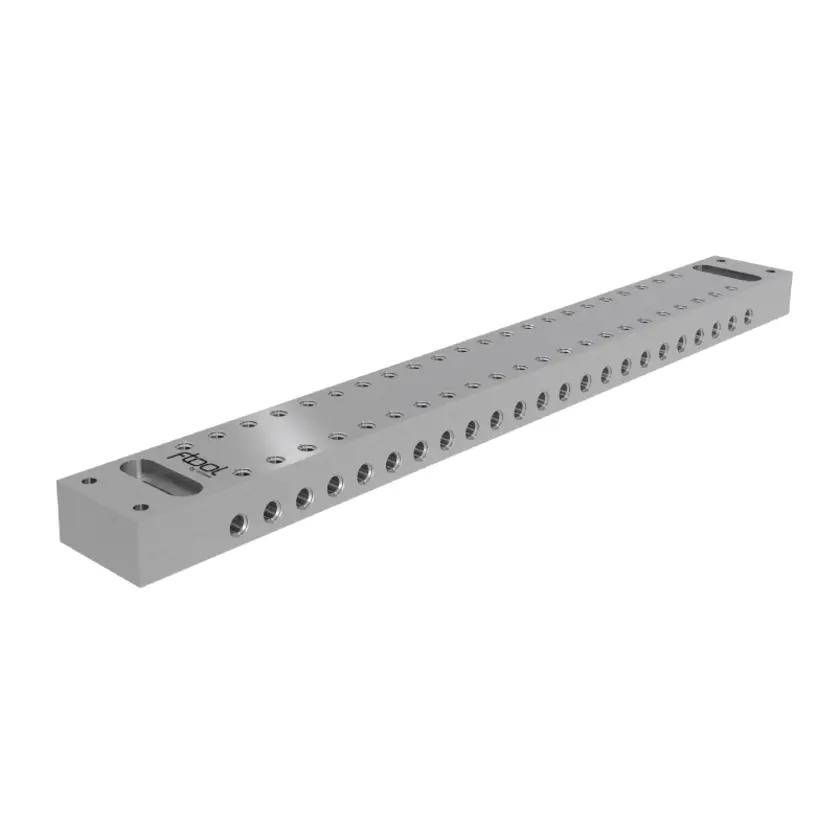

Clamping beam 550x60x30 mm / A=480 mm

Application

Clamping of workpieces with clamping claws on Z-discs. The beams are accurate grinded and consist of hardened, corrosion resistant, alloyed high grade steel.. With the distance plate set 3 mm, set of 2 (FT 02466) the position can be lifted over the collision zone. The workpiece level can be levelled with the 4 pressure screws.

Set contains

1 x beam
4 x pressure piece
4 x pressure bolt M8x16
1 Set FT 02466 spacer plates set 3 mm / 2 pieces per set
2 x ER 071901 Z Support
2 x ER 007729 Z support washer diameter12.5/28 x 3 mm
2 x ER 129968 bracket
4 x ER 000806 countersunk I6KT M8 x 16 mm
2 x ER 017920 special countersunk M8 x 14 mm
2 x ER 019884 cylinder screw I6KT M8 x 40 mm with a low head

Product Labels

• Manual operation
• Suited for submerged operation
• Corrosion-resistant material
• For Wire-EDM
