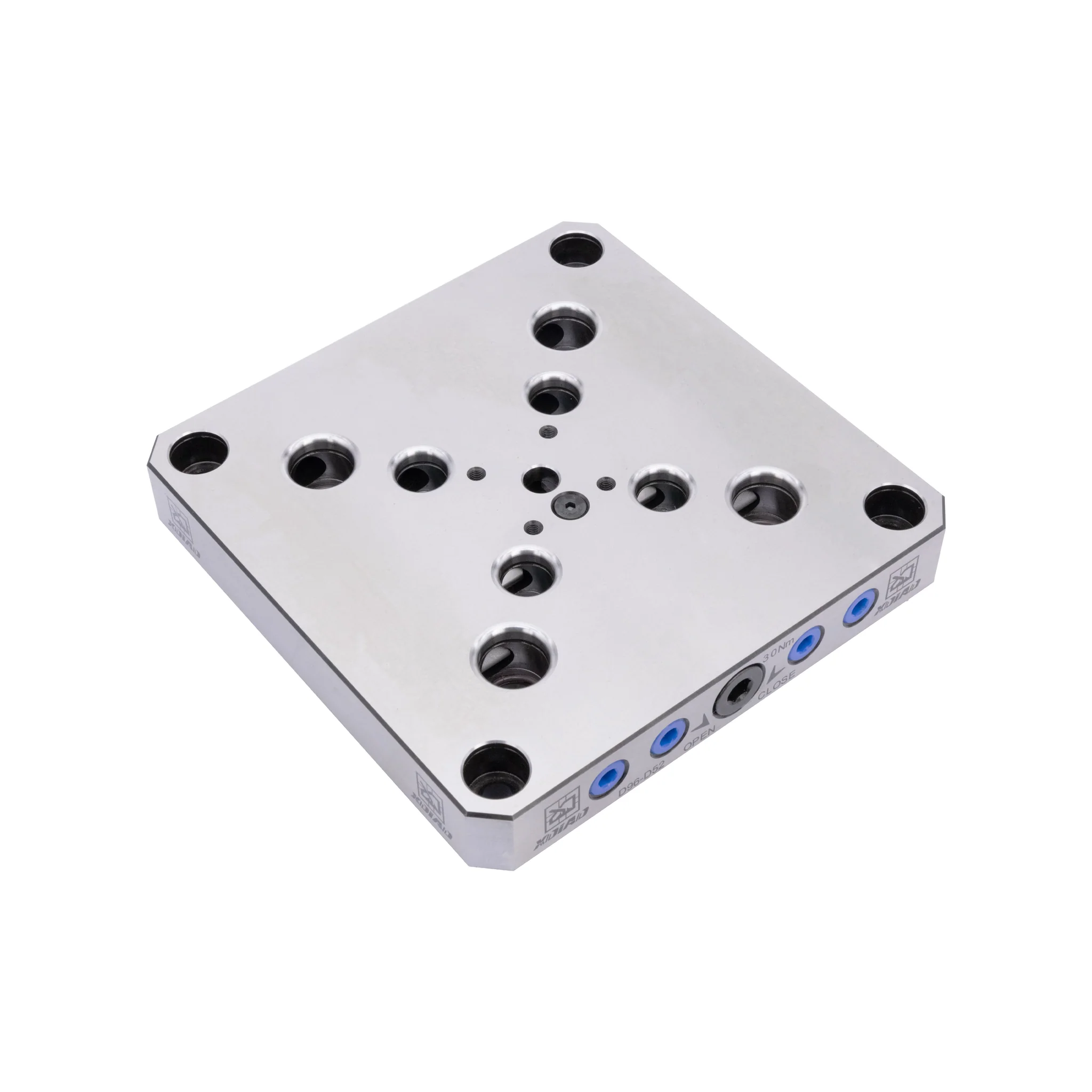

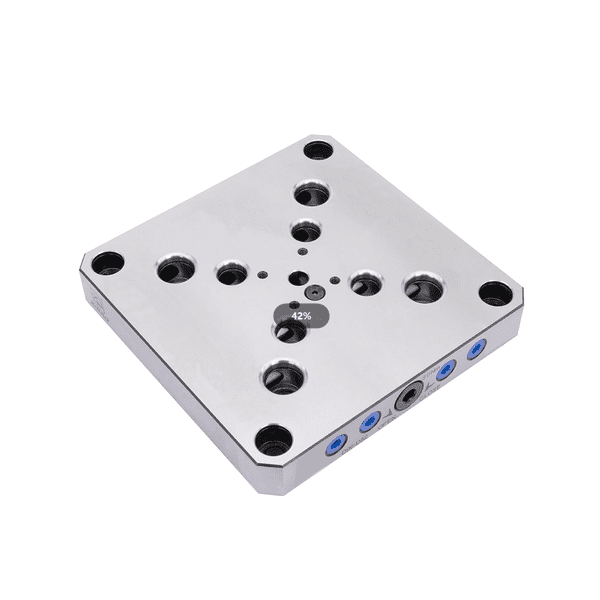

The 8-hole zero-point quick-change system is a manually clamped master plate designed for rapid locking and high-precision positioning. It features 52X52mm and 96X96mm locating holes, compatible with D52 pull studs or D96 pull studs, respectively.

The key benefit of this system is its ability to quickly switch between different fixtures, such as D52 vises, D96 vises, or various-sized three-jaw chucks, when machining workpieces of different sizes. This minimizes machining interference and significantly improves efficiency when handling diverse materials and workpiece dimensions.

Compatible:D52 vise/D96 vise
Up to 90% less set-up time
Increase of machine running time
Function: Bearing capacity: 200 kg
High repetition accuracy 0.005mm
Positioning and clamping in one operation
