Description

ER-157413

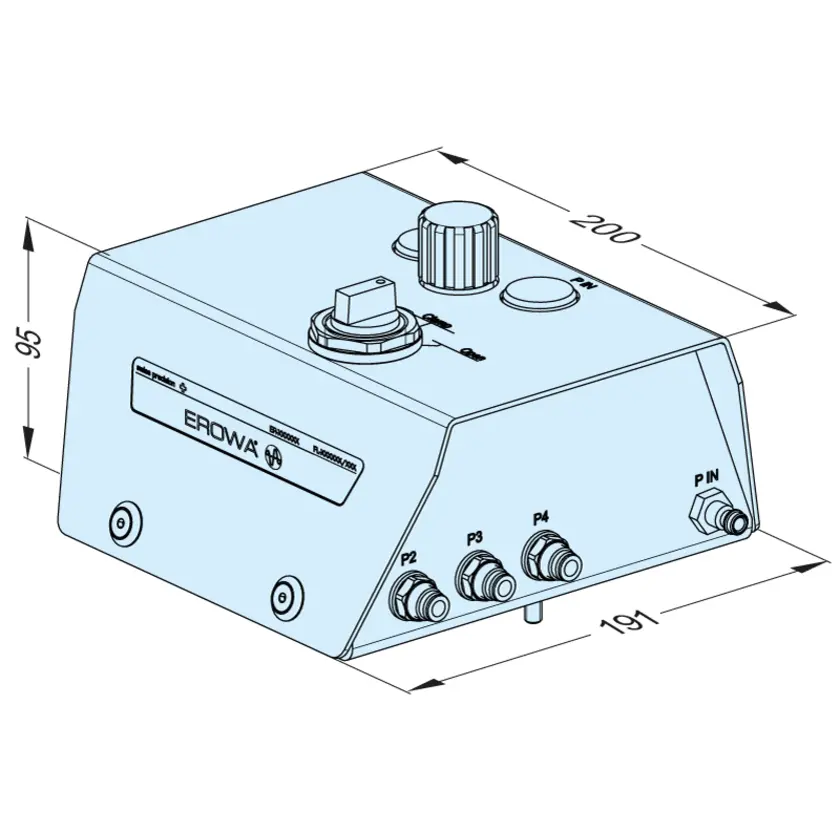

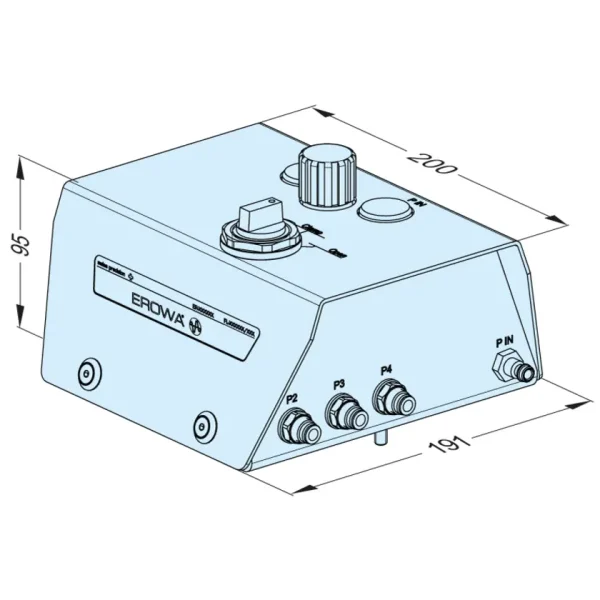

Control box 1-fold with booster

Version

Manual control box for 1 chuck. Integrated booster with a maximum loading ratio of 1:2. To control the opening / reclamping / cleaning functions. Pressure adjustable, display through a manometer. Includes a set of tubes.

Connections

1 input (P IN) and 3 outputs (P2 Open / P3 Clean / P4 Reclamp).

Application

To operate chuck types ITS, ITS Compact, CombiChuck, PowerChuck P, VPC, UPC or PM Tooling.

Product Labels

• For EDM sinking
• For chip-removing processes
• For Wire-EDM
