Description

FT-01352

Corner set 85

Application

The corner set is the perfect pallet for wire EDM plants. The corner set can be fixed left side, right side as well as frontal over 45 degrees. The parts can be clamped outside the machine in the corner set and afterwards be clamped with the bead stops (basic ruler) in reference position of the machine. The clamping lips are lying in basic position on zero level.

Dimension

Leg length 135 x 135 mm / height = 22 mm.

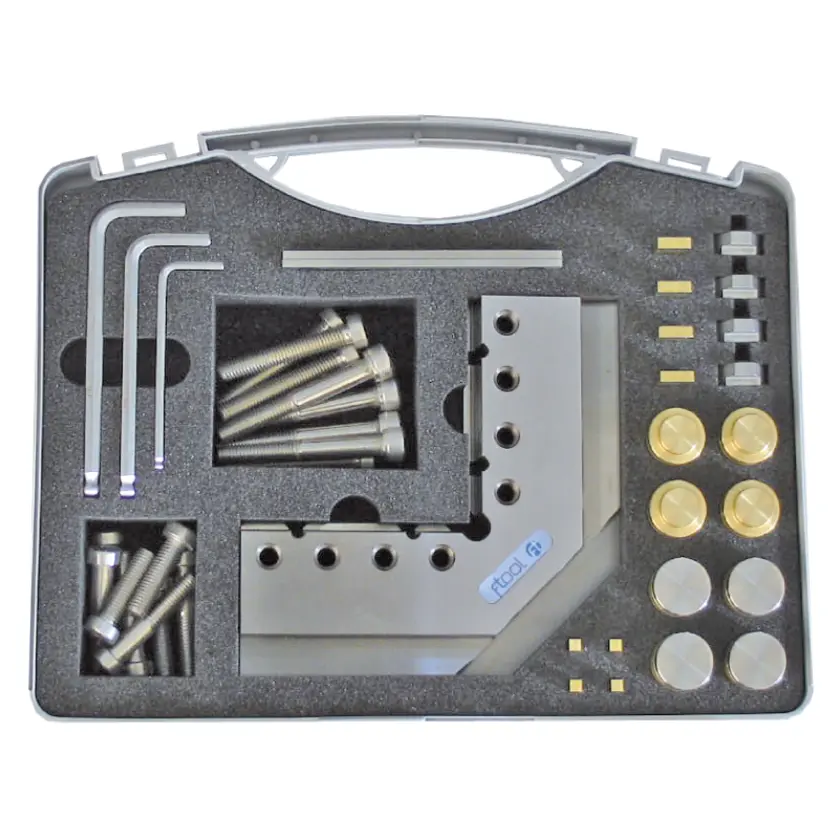

Set contains

– 1 x corner
– 2 x FT 01070 spacer plate 100 x 29 x 3 mm
– screws / keys / brackets / support plates

Product Labels

• Manual operation
• Suited for submerged operation
• Corrosion-resistant material
• For Wire-EDM
