Description

FT-01789

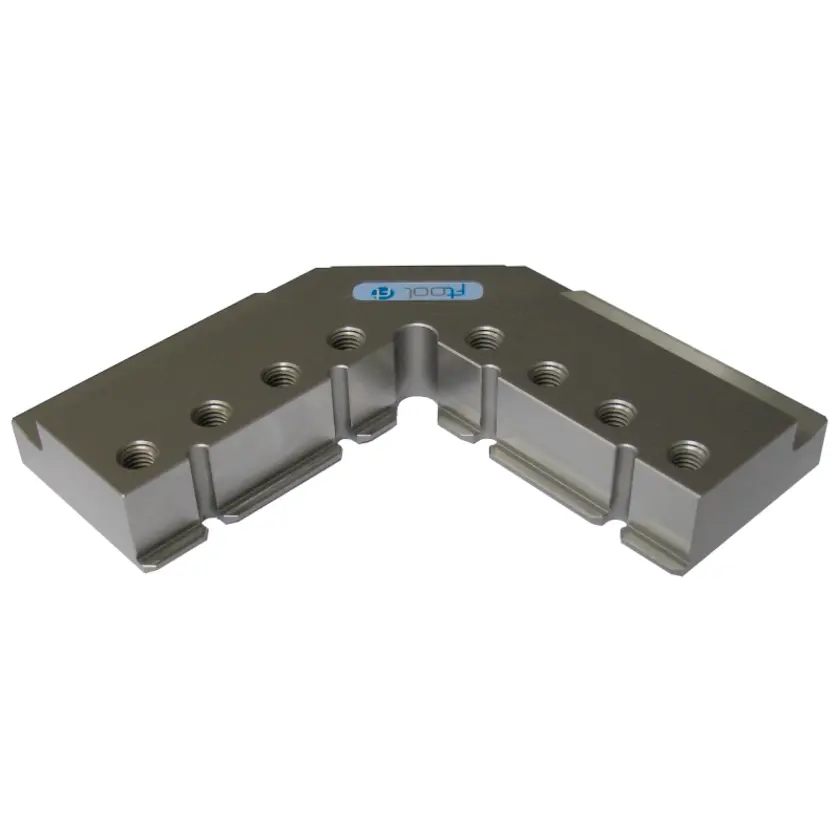

Corner set 85 special +3 mm

Application

The corner can be used on the left or on the right, as well as frontally around 45 degrees. The parts can be clamped outside the machine and then clamped into the reference position of the machine with the alignment checking rails (based rails). In the original position, the clamping ledges ae 3mm above zero level.

Dimension

Arm length: 135mm x 135mm / height: 22mm.

The set contains

– 1 corner – various bolts, keys, brackets and supports

Product Labels

• Manual operation
• Suited for submerged operation
• Corrosion-resistant material
• For Wire-EDM
