Description

ER-073369

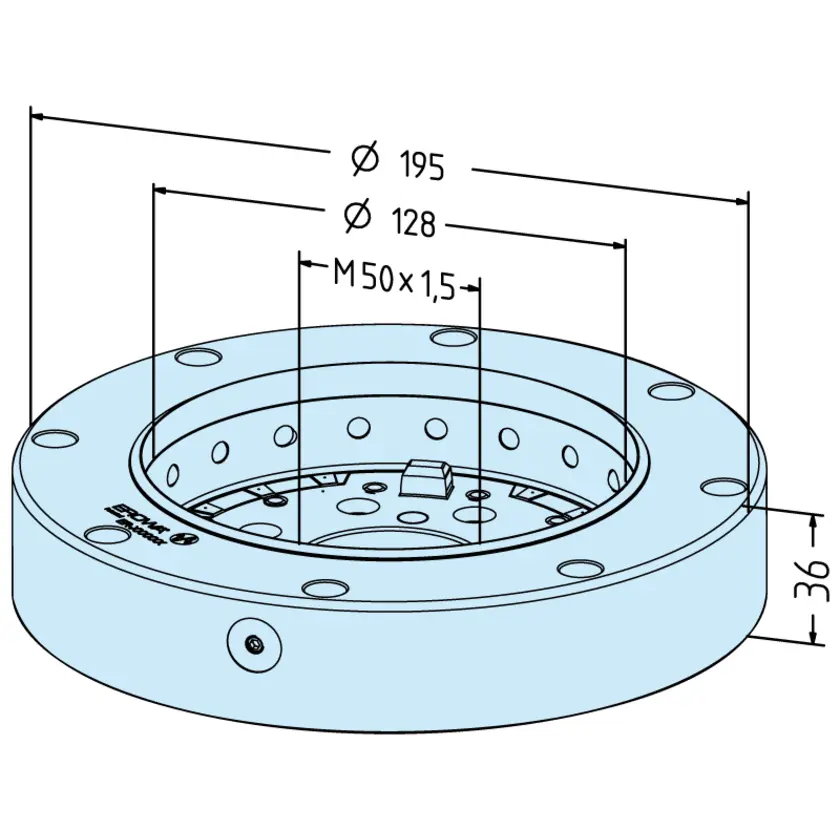

Die-plate Chuck PM128 II AirDock

Version

Hardened steel. Through hole: diameter 48 mm. Outside seal. Positioning ring, including 2 AirDock valves. Max. speed 4,000 min-1.

Clamping power

23,000 N (reclamped at 6 bar).

Connections

At the rear through customized base plate, flange or rotatable pneumatic connector (not supplied with this unit).

Operation

With compressed-air gun, control unit or through the machine control unit.

Application

On dividing heads, indexing tables, lathes and circular grinding machines. To accommodate adapter chuck, die-plates PM128 and customer-specific jigs.

Product Labels

• Operate with compressed air jet
• Operate with manual control unit
• Operate with electropneumatic control unit
• With central flushing clearance
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
