Description

ER-047544

Die-plate chuck PM128 II Precise

Version

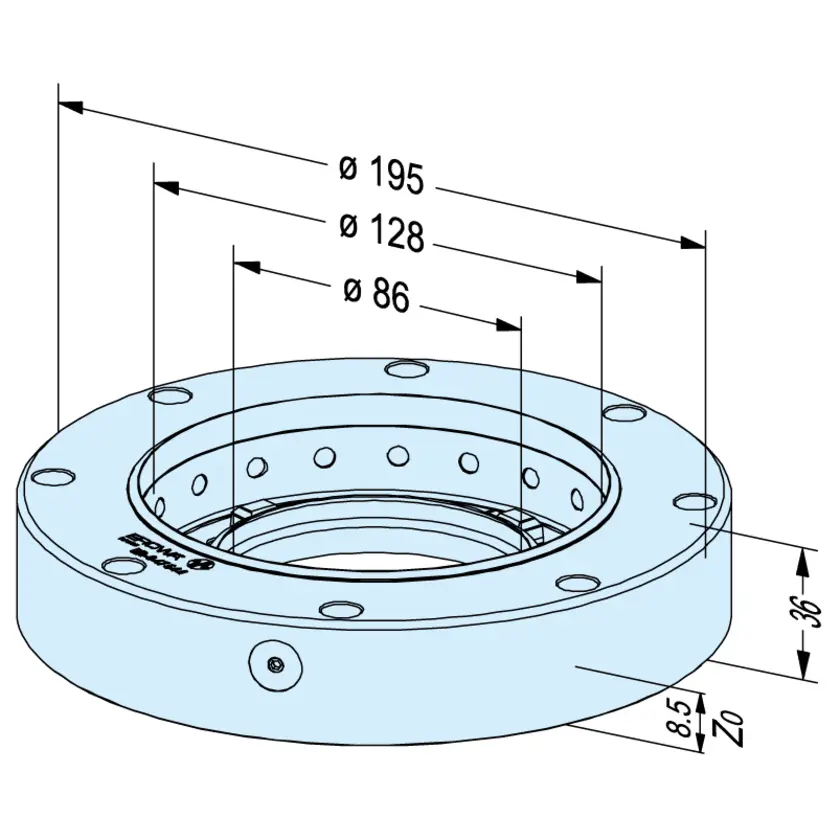

Steel, hardened. Through borehole diameter 86. External seal.

Clamping power

23000 N (reclamped at 6 bar).

Connections

At the rear, with two lines.

Operation

With control unit.

Application

On milling machines and powder presses.
To accommodate die-plate pallets PM128 Precise.

Product Labels

• Operate with manual control unit
• Operate with electropneumatic control unit
• With central flushing clearance
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
