Description

FT-01350

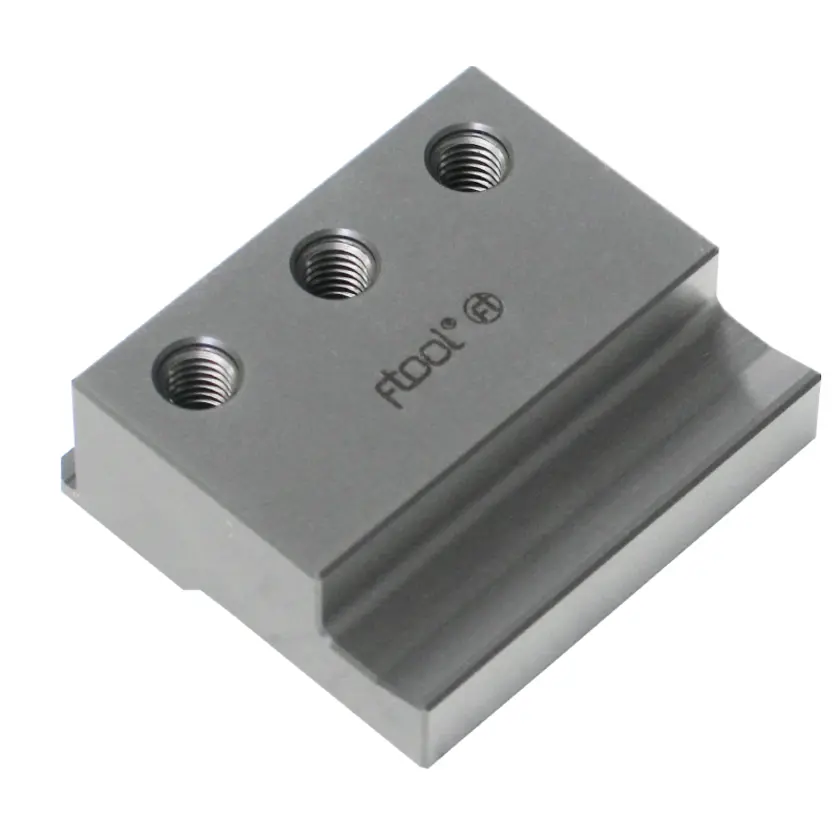

Front spanner

Version

The front spanner provides a support plate for small parts or can be used in combination with the side spanner (FT 01351), the corner set 85 (FT 01352) or with the distance support mini (FT 01066). The clamping lip lies in basic position on zero level. This zero level can be hoisted 3 mm with the spacer plates. Clamping section of front spanner +3 mm, is 3 mm above Z=0 to avoid collision with lower guide.

Dimension

55 x 60 mm / height = 22 mm

Set contains

– 1 x front spanner
– 2 x FT 01382 F-Tool bracket ER34 corrosion-resistant

Product Labels

• Manual operation
• Suited for submerged operation
• Corrosion-resistant material
• For Wire-EDM
