Description

ER-108154

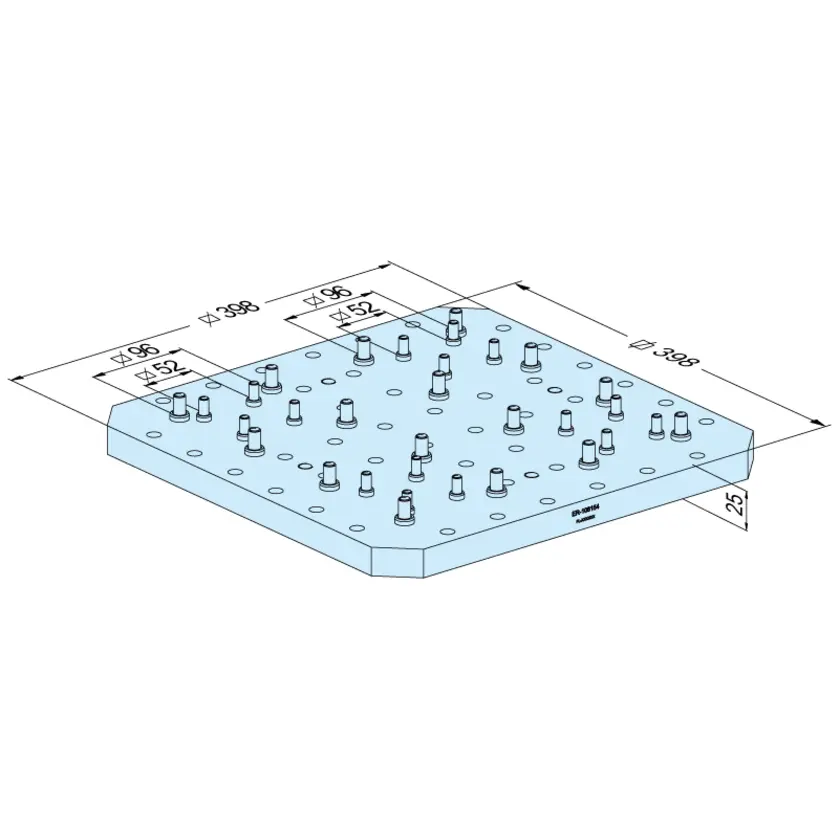

Grid plate MTS 398×398 for vise

pitch 52 & 96

Version

Universal aluminum grid plate, to be fitted to MTS pallets 398×398. Includes bolts and centering pins.

Application

Prepared to accommodate several vises with pitch 52mm + 96 mm, as well as LANG Quick Towers*.

To fit

Remove chucking spigot from vise or LANG Quick Tower* and fit centering pins. Attach to pallet with bolts.

Note

• Manual operation
• For EDM sinking
• For chip-removing processes
