Description

ER-097362

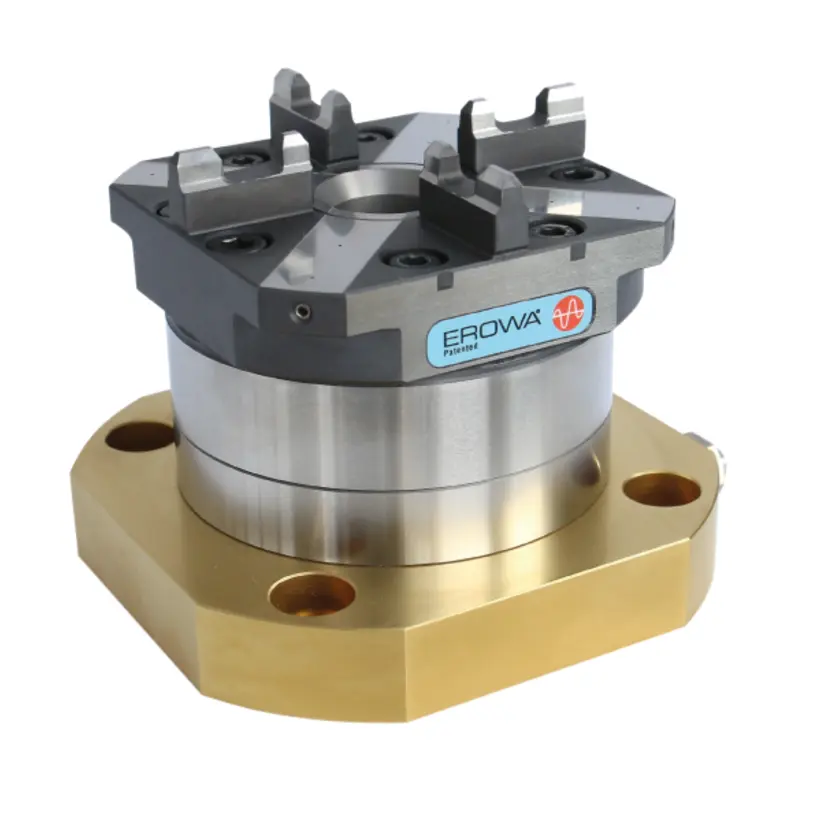

HP ITS Chuck

with base plate

Version

High precision. Repeatability within 0.001 mm.

Clamping power

2’500 N.

Connections

Laterally on base plate. Use of control unit is recommended.

Application

To accommodate electrode holders, holders diameter 72 and pallets diameter 115 / diameter 148. Titan-nitride coated base plate for best performance and easy recognition.

Product Labels

• Operate with compressed air jet
• Operate with manual valve
• With central flushing clearance
• For EDM sinking
• For chip-removing processes
