Description
ER-099276
Linear Slide 5X Stamp
CleverClamp
Version

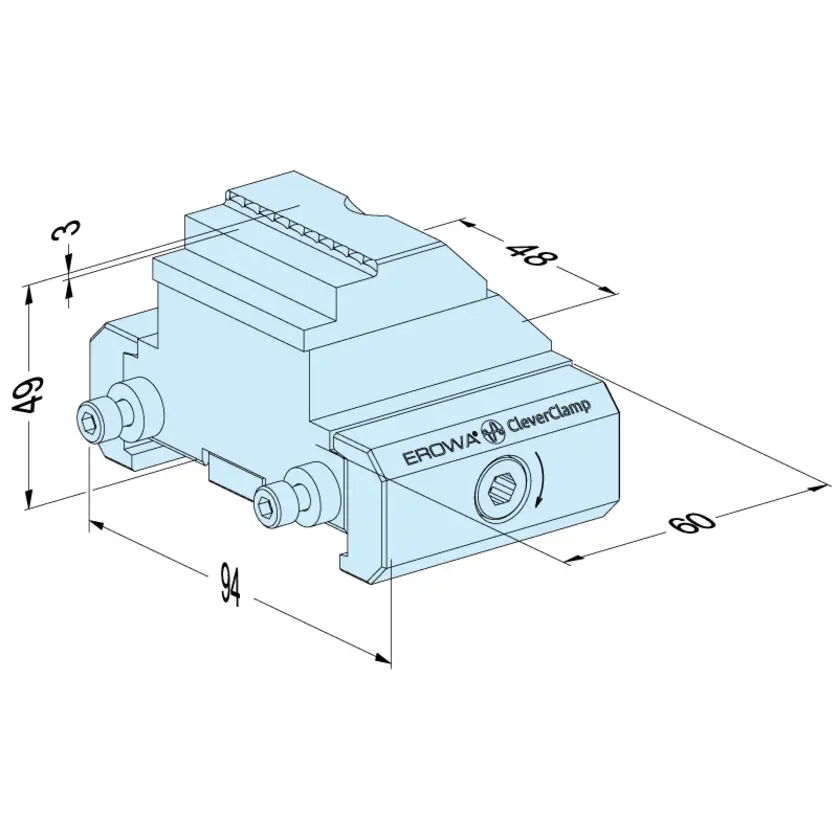

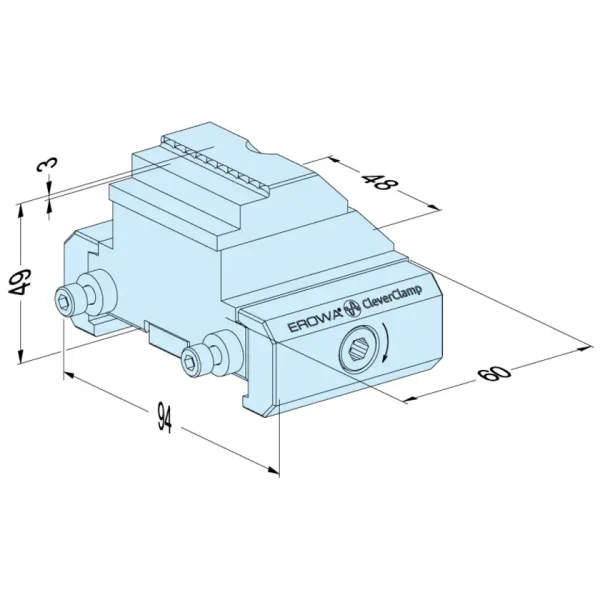

Steel, hardened, width48mm, height 49mm, clamping side with stamp contours.
Application
Optimised machine spindle accessibility for 5-axis applications. Ideal for clamping blanks at a minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping.
Mounting
On CleverClamp rail.
Important
Modularly compatible with all linear jaws. Can be used for single and multiple fixtures.
Clamping force
Up to 16kN max. with a torque of 40Nm max.
Clamping stroke
Up to 5mm.
Product Labels
- For EDM sinking
- For chip-removing processes
