Description

ER-099282

Linear Slide Multi Stamp

CleverClamp

Version

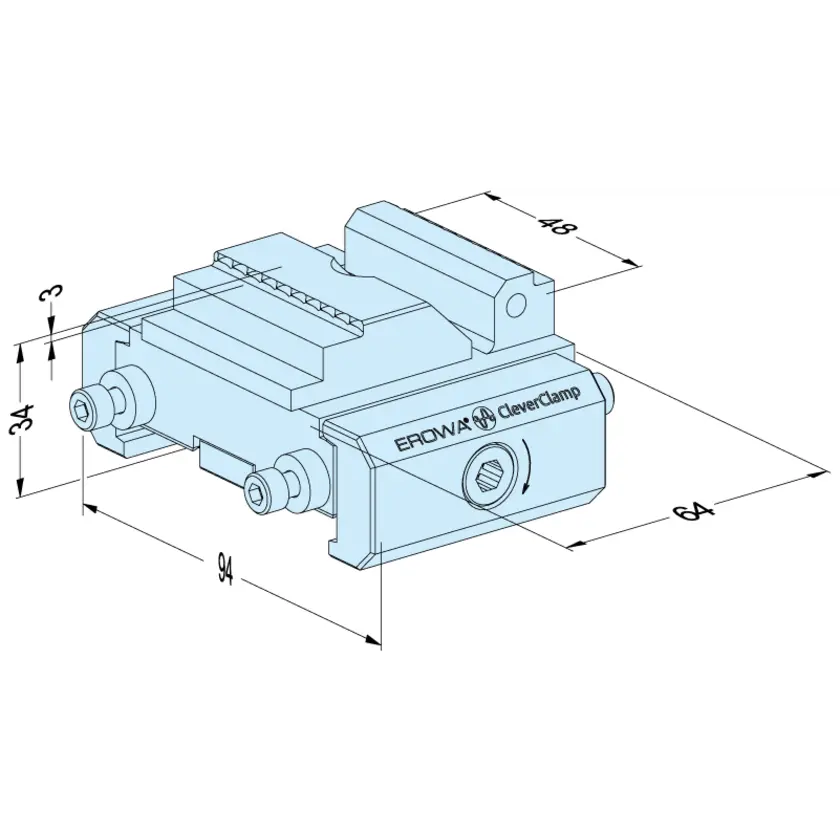

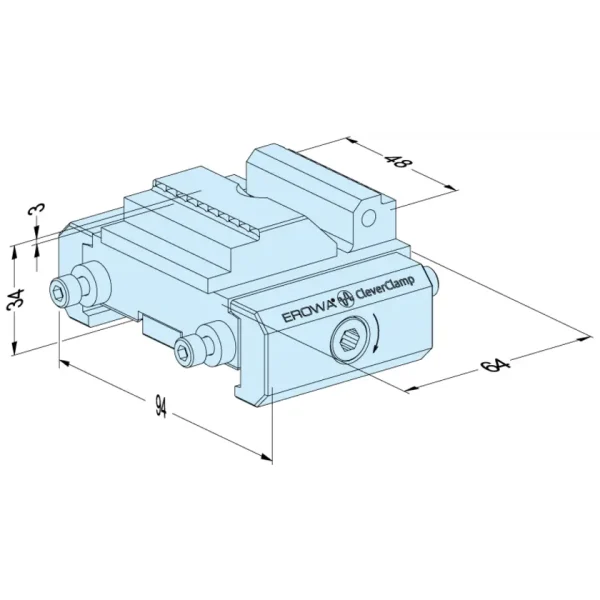

Steel, hardened, width 48mm, height 34mm, clamping and stop sides with stamp contours

Application

Ideal for clamping blanks at the minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping. Can also be used for two-side machining.

Mounting

On CleverClamp rail.

Important

Modularly compatible with all linear jaws. Suitable for single and mutliple fixtures.

Clamping force

Up to 16kN max. with a torque of 40Nm max.

Clamping stroke

Up to 5mm.

Product Labels

• For EDM sinking
• For chip-removing processes
