Description

ER-099277

Linear Slide Multi Stamp Wide

CleverClamp

Version

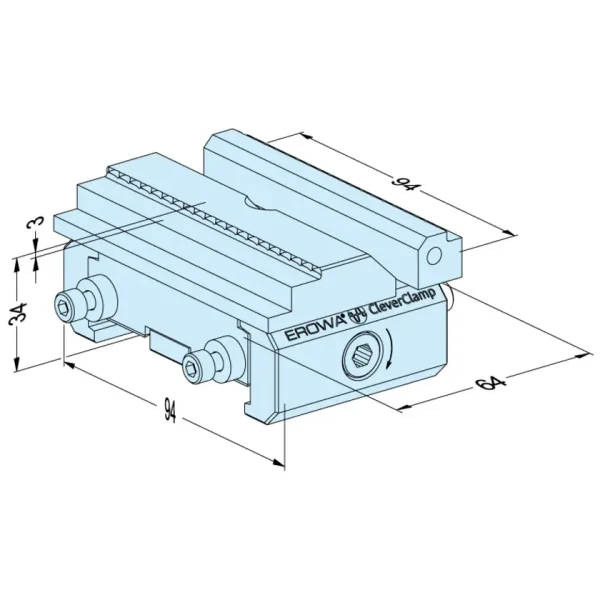

Steel, hardened, width 94mm, height 34mm, clamping and stop sides with stamp contours.

Application

Ideal for clamping blanks at a minimum clamping height of 3mm. Secure grip thanks to stamp technology for direct stamping. Can also be used for two-side machining.

Mounting

On CleverClamp rail.

Important

Modularly compatible with all linear jaws. Suitable for single and multiple fixtures.

Clamping force

Up to 16kN max. with a torque of 40Nm max.

Clamping stroke

Up to 5mm.

Product Labels

• For EDM sinking
• For chip-removing processes
