Description

ER-100145

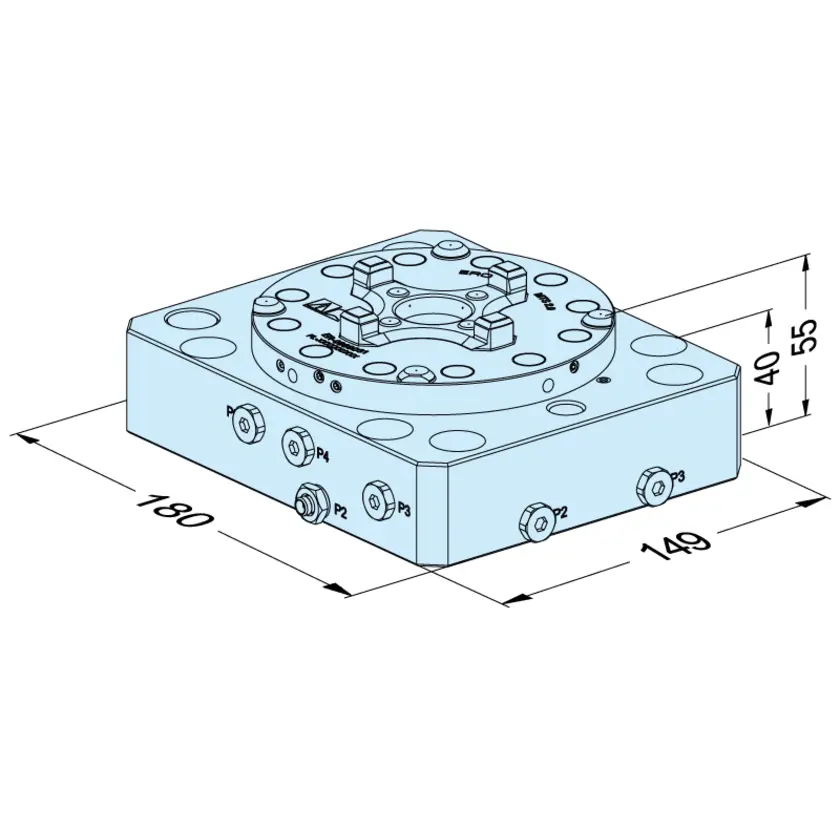

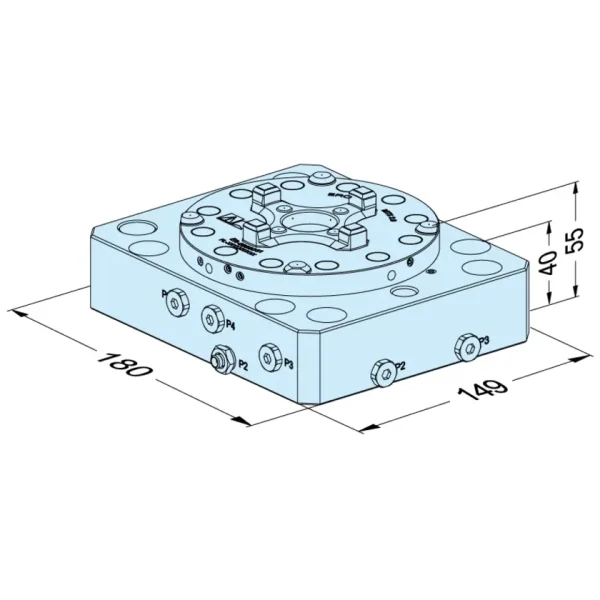

MTS 2.0 base plate 149 x 180 S-P/A

Version

Base plate, unhardened steel.

Connections:

Laterally: for opening, reclamping, the open check and for cleaning/presence check.

Application

To hold single- and multiple pallets. To be set up on machine tables.

Mounting

Mounting hole configuration for R50/M12 grids and for table with T-slot distances of 63/100 mm.

Product Labels

• Operate with manual control unit
• Operate with electropneumatic control unit
• Suited for submerged operation
• Corrosion-resistant material
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
