Description

ER-099539

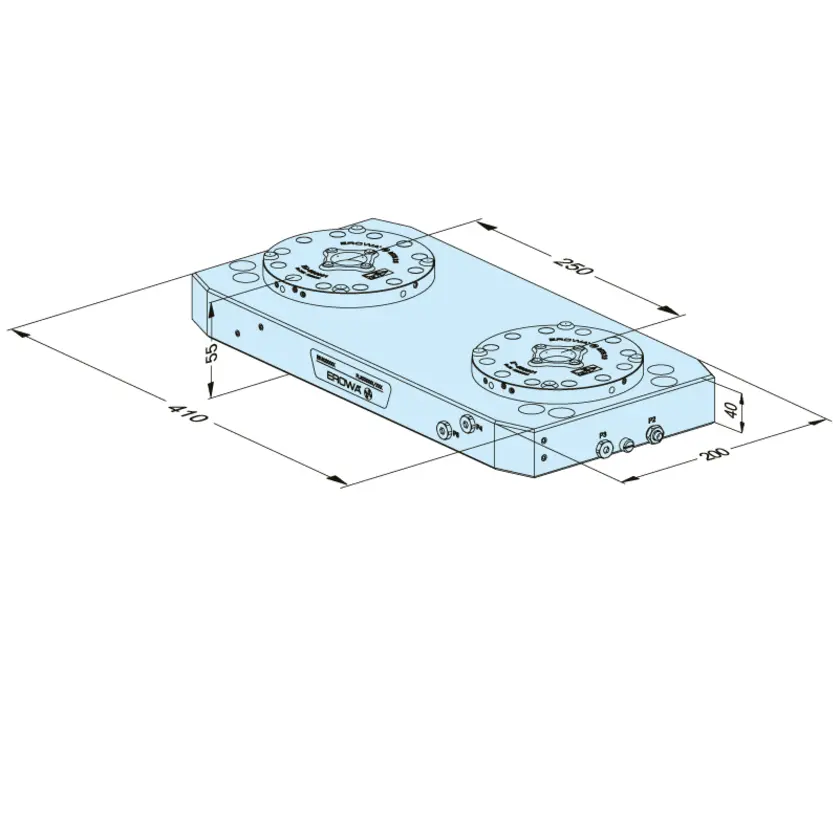

MTS 2.0 base plate 200 x 410 P/A

Pitch 250

Version

Base plate, unhardened steel. Pitch: 250 mm

Connections

Laterally: for opening, reclamping, the open check and for cleaning/presence check.

Application

To hold double pallets. To be set up on machine tables.

Mounting

Mounting hole configuration for R50/M12 grids and for tables with T-slot distances of 63/100 mm.

Product Labels

• Operate with manual control unit
• Operate with electropneumatic control unit
• Suited for submerged operation
• Corrosion-resistant material
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
