Description

ER-133891

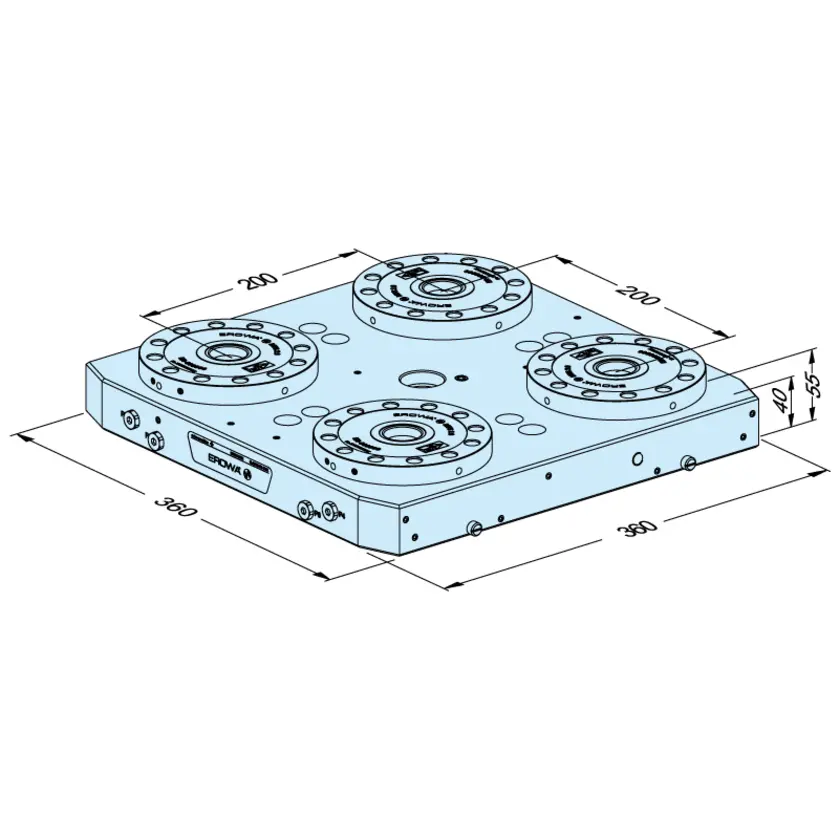

MTS 2.0 base plate 360 x 360 P

Universal, pitch 200

Version

Base plate universal, steel unhardened, pitch 200mm. Including adapter flange with air boreholes.

Connections

3 pneumatic connections, laterally and from underneath on PC* diameter57mm: for opening, reclamping and open check.

Option

Customized adapter flange available on request.

Application

To accommodate multiple pallets. For direct assembly on machine tables.

Mounting

Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.

Product Labels

• Manual operation
• Operate with manual control unit
• Suited for submerged operation
• Corrosion-resistant material
• For EDM sinking
• For chip-removing processes
