Description

ER-143858

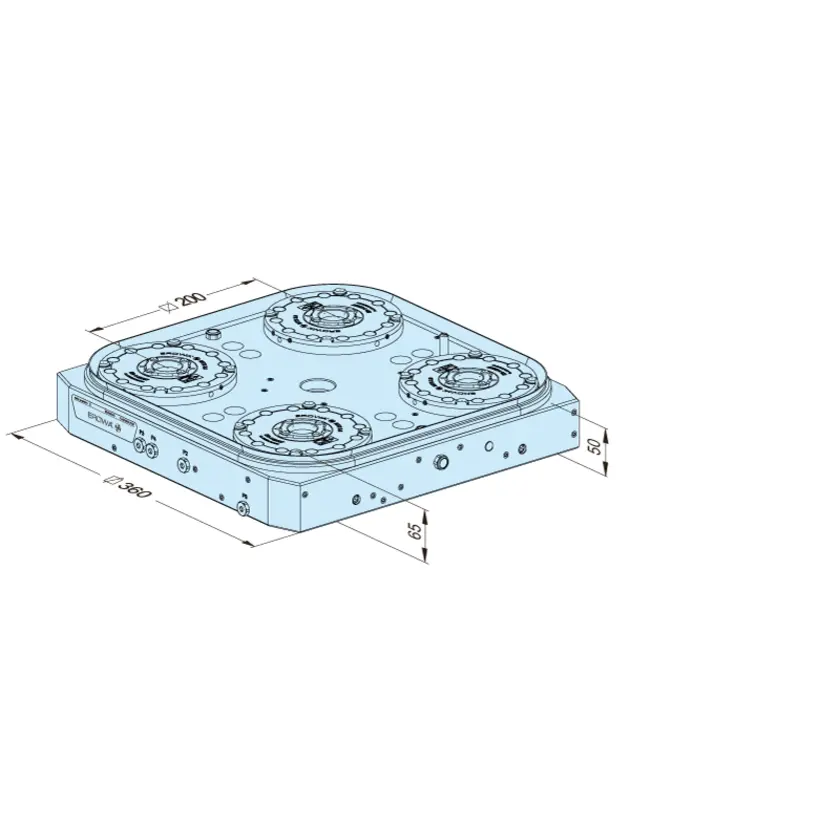

MTS 3.0 base plate 360 x 360 P/A

universal, pitch 200

Version

Base plate universal, steel unhardened, pitch 200mm. Including adapter flange with air boreholes.

Connections

4 pneumatic connections, laterally and from underneath on PC* diameter57mm: for opening, reclamping, open check and for cleaning/presence check.

Option

Customized adapter flange available on request.

Application

To accommodate multiple pallets. For direct assembly on machine tables.

To fit

Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.

Product Labels

• Corrosion-resistant material
• Suited for automatic operation
• For chip-removing processes
