Description
ER-151374

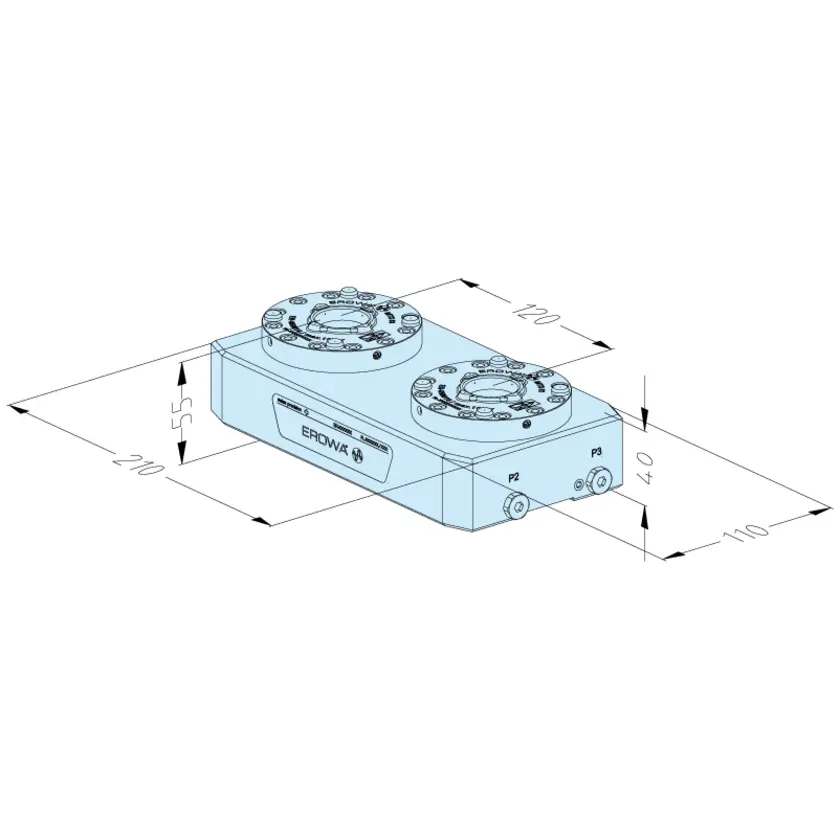

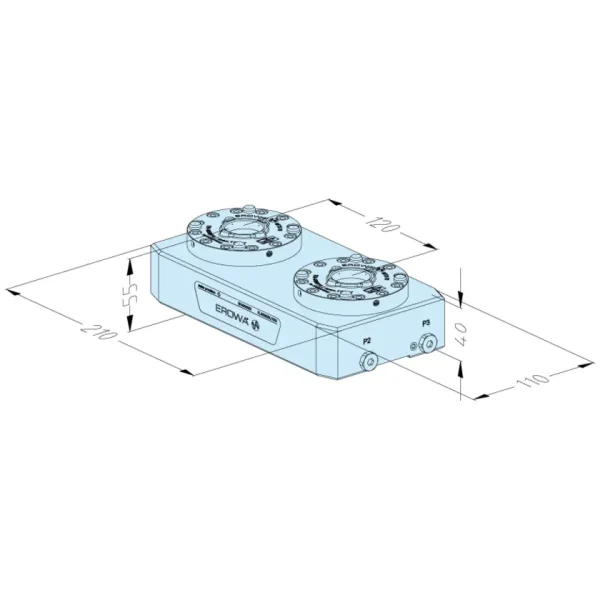

MTS 81 base plate 110 x 210 P/A
Pitch 120
Version
Base plate, steel, unhardened; Pitch: 120 mm.
Connections
Lateral, 3 pieces (pneumatic): for opening, reclampging and cleaning / presence check.
Application
To accommodate multiple pallets. For direct assembly on machine tables.
Accessories supplied
2 x ER-014326 threaded connector, straight, diameter 6
2 x ER-002675 plugs, diameter 6
1 x ER-014324 threaded connector, straight, diameter 4
1 x ER-002673 plug, diameter 4
Note
Attachment boreholes can be drilled by customers.
Caution
Do not drill through any air ducts! Please order operating instructions from your specialist EROWA dealer.
Product Labels
- Operate with manual control unit
- Operate with electropneumatic control unit
- Suited for submerged operation
- Suited for automatic operation
- For chip-removing processes
