Description

ER-148101

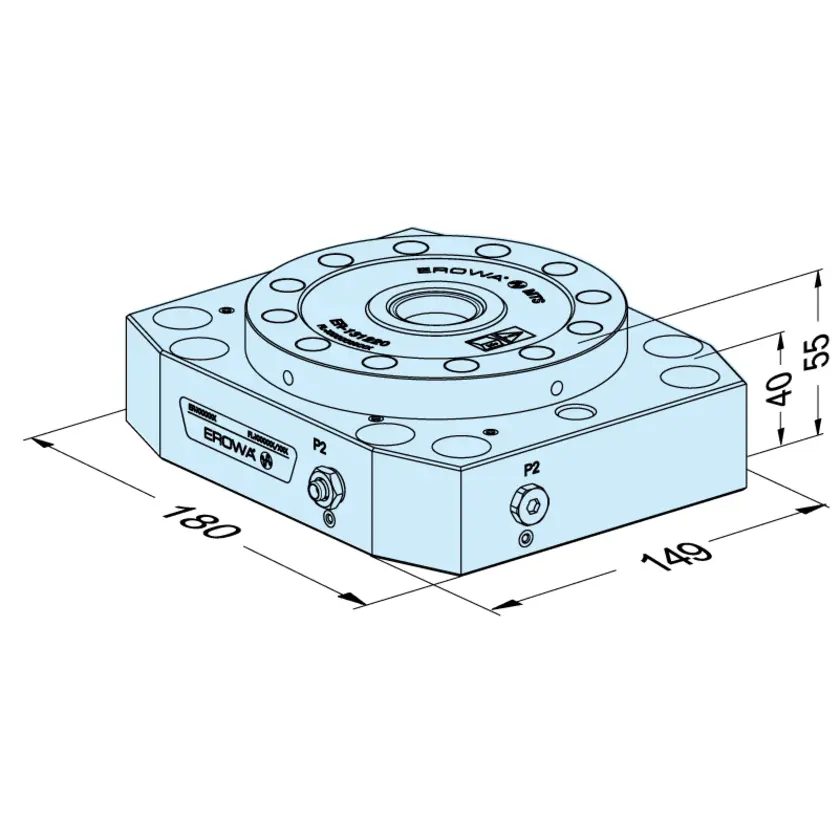

MTS base plate 149 x 180 M-P

1-fold

Version

Baseplate, steel unhardened.

Connections

Lateral, 1 piece (pneumatic): for opening.

Application

To accommodate multiple pallets. For direct assembly on machine tables.

Mounting

Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.

Product Labels

• Manual operation
• Operate with compressed air jet
• Suited for submerged operation
• For EDM sinking
• For chip-removing processes
