Description

ER-148220

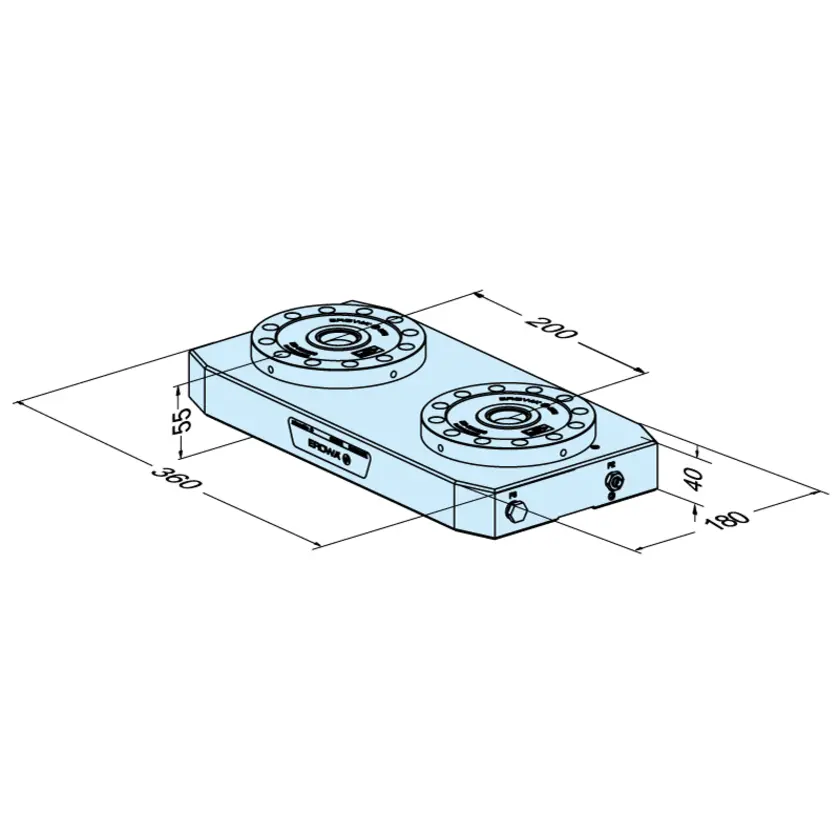

MTS base plate 180 x 360 P

Pitch 200

Version

Base plate, steel, unhardened. Pitch: 200 mm.

Connections

Lateral, 1 piece (pneumatic): for opening.

Application

To accommodate 2-fold pallets. For direct assembly on machine tables.

Note

Attachment boreholes can be drilled by customers.

Caution

Do not drill through any air ducts! Please check operating instructions.

Product Labels

• Manual operation
• Operate with compressed air jet
• Suited for submerged operation
• For EDM sinking
• For chip-removing processes
