Description

ER-148225

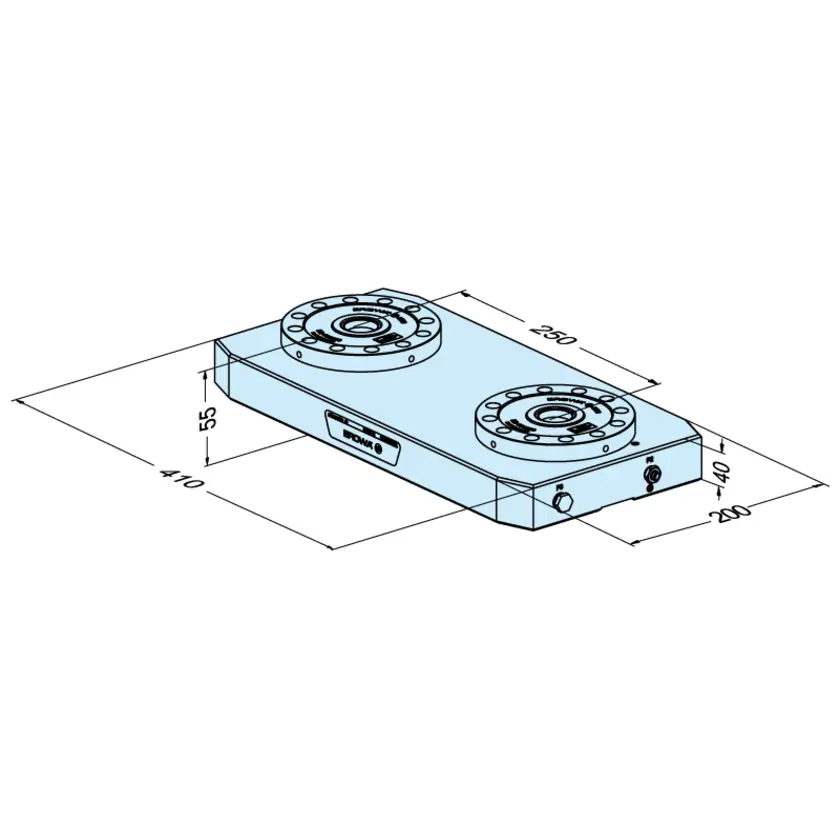

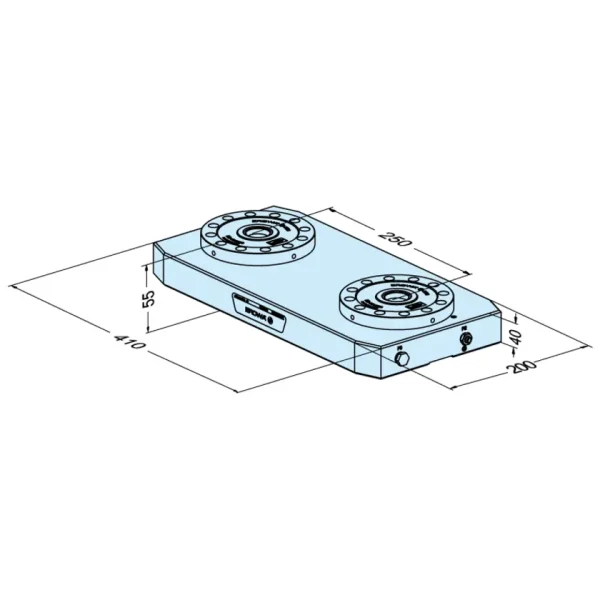

MTS base plate 200 x 410 P

Pitch 250

Version

Base plate, steel, unhardened. Pitch: 250 mm.

Connections

Lateral, 1 piece (pneumatic): for opening.

Application

To accommodate 2-folt pallets. For direct assembly on machine tables.

Note

Attachment boreholes can be drilled by customers.

Caution

Do not drill through any air ducts! Please check operating instructions.

Product Labels

• Manual operation
• Operate with compressed air jet
• Suited for submerged operation
• For EDM sinking
• For chip-removing processes
