Description

ER-160420

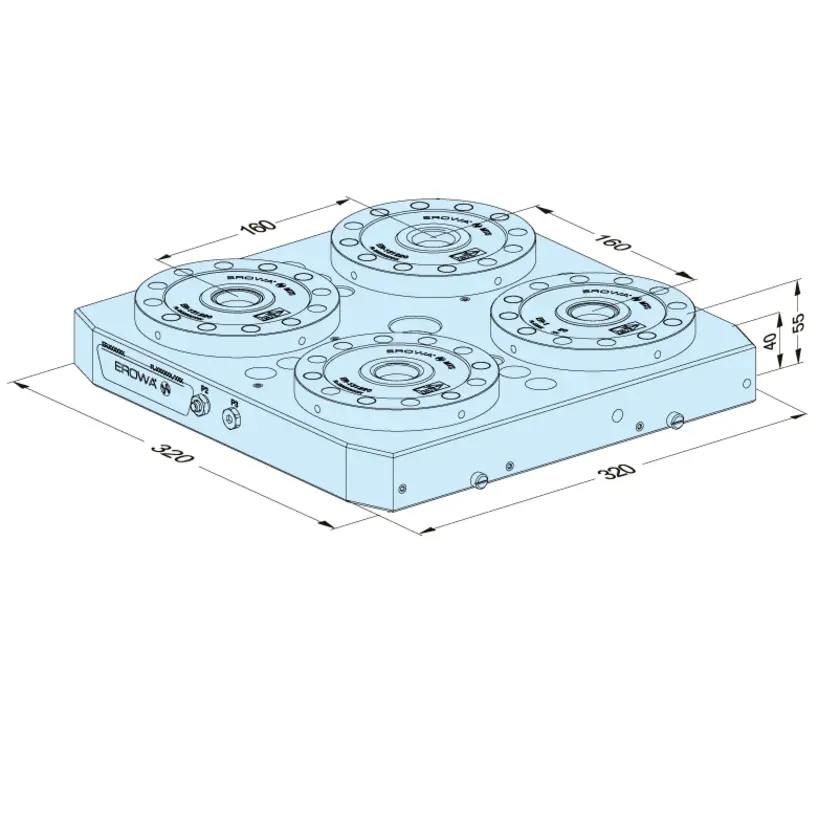

MTS base plate 320 x 320 P/A

Universal, pitch 160

Version

Base plate universal, steel unhardened, pitch 160 mm. Including Adapter flange without air boreholes.

Connections

Lateral, 2 pieces (pneumatic): for opening and and cleaning/presence check.

Option

Control from underneath possible with the relevant adapter flange (available on request).

Application

To accommodate multiple pallets. For direct mounting on machine tables.

Mounting

Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.

Product Labels

• Manual operation
• Operate with compressed air jet
• Operate with electropneumatic control unit
• Suited for submerged operation
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
