Description

ER-148421

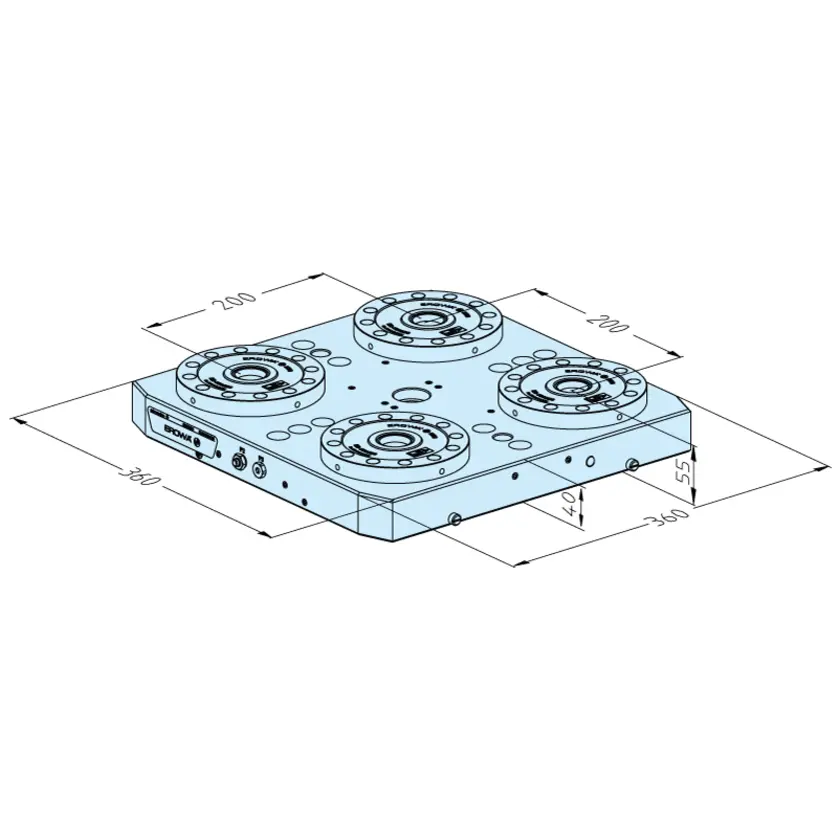

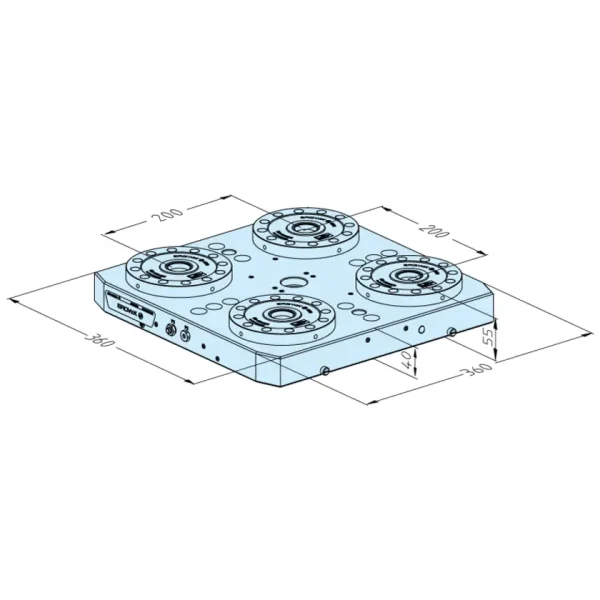

MTS base plate 360 x 360 P

Universal, pitch 200

Version

Base plate universal, steel unhardened, pitch 200mm. Including adapter flange without air boreholes.

Connections

Lateral, 1 piece (pneumatic): for opening.

Option

Control from underneath possible with the relevant adapter flange (available on request).

Application

To accommodate multiple pallets. For direct assembly on machine tables.

Mounting

Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.

Product Labels

• Manual operation
• Operate with compressed air jet
• Suited for submerged operation
• For EDM sinking
• For chip-removing processes
