Description

ER-148820

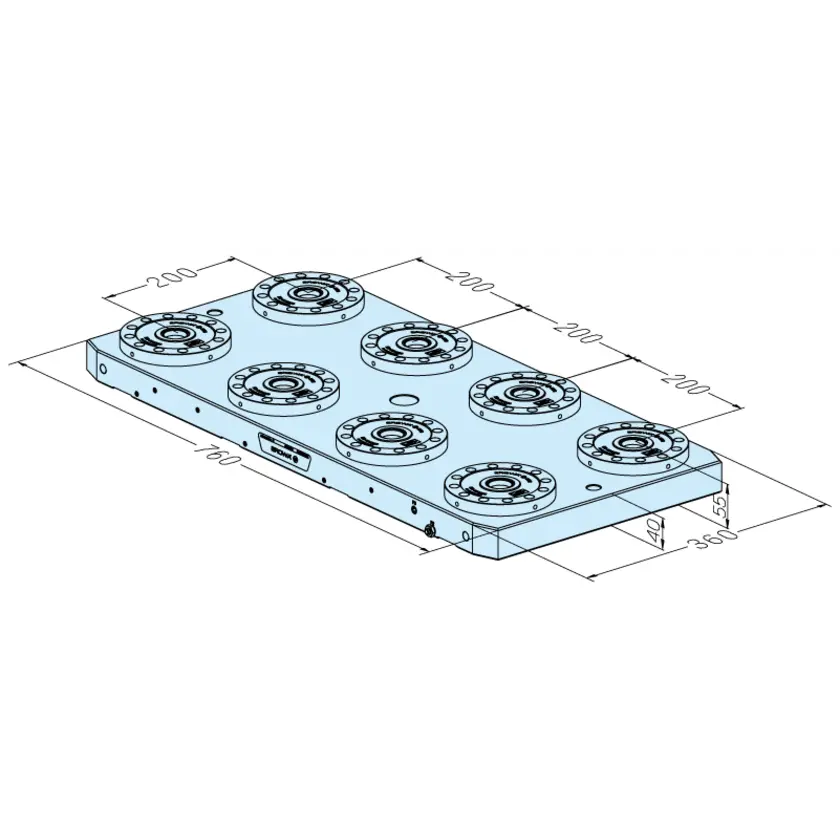

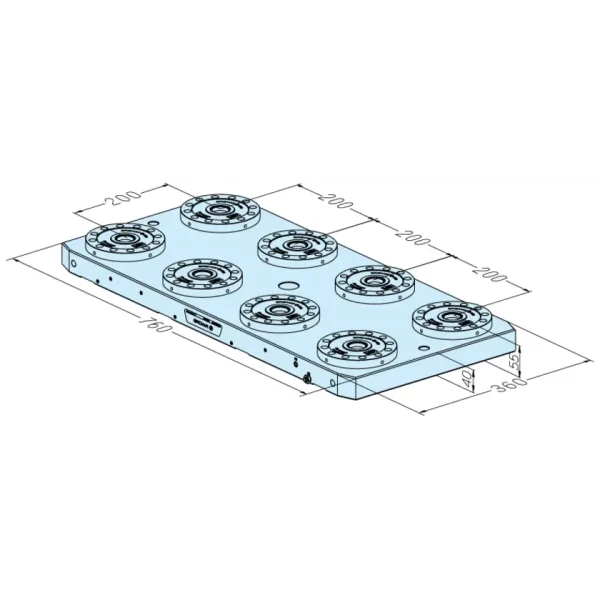

MTS base plate 360 x 760 P

Pitch 200

Version

Base plate, steel, unhardened. Pitch: 200 mm.

Connections

Lateral, 1 piece (pneumatic): for opening.

Application

To accommodate multiple pallets. For direct assembly on machine tables.

Note

Attachment boreholes can be drilled by customers.

Caution

Do not drill through any air ducts! Please check operating instructions.

Product Labels

• Manual operation
• Operate with compressed air jet
• Suited for submerged operation
• For EDM sinking
• For chip-removing processes
