Description

ER-148426

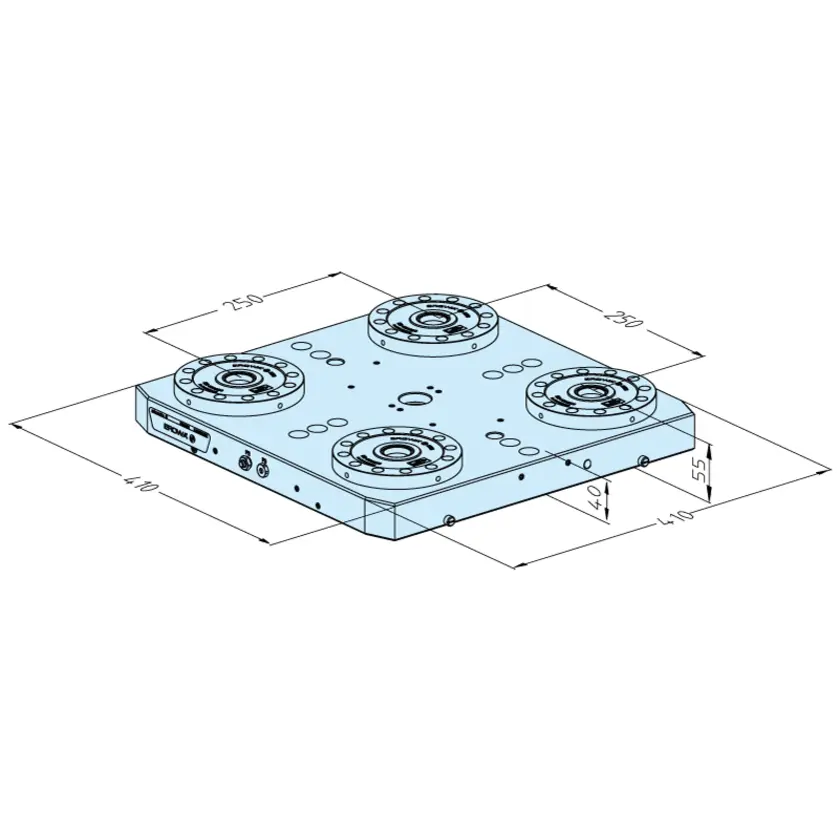

MTS base plate 410 x 410 P

Universal, pitch 250

Version

Base plate universal, steel unhardened, pitch 250mm. Including adapter flange without air boreholes.

Connections

Lateral, 1 piece (pneumatic): for Opening.

Option

Control from underneath possible with the relevant adapter flange (available on request).

Application

To accommodate multiple pallets. For direct mounting on machine tables.

Mounting

Mounting hole pattern for grid 50mm/M12 and for machine tables with T-slot distances of 63 and 100mm.

Product Labels

• Manual operation
• Operate with compressed air jet
• Suited for submerged operation
• For EDM sinking
• For chip-removing processes
