Description

ER-040701

Pallet PM85 Precise

1 piece

Version

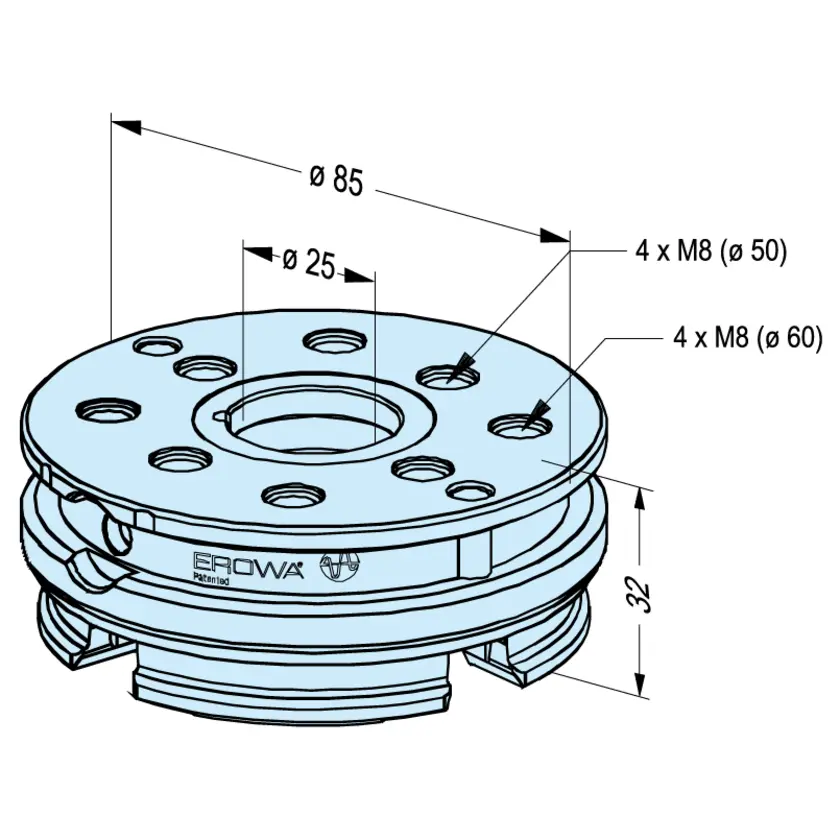

Steel, hardened, corrosion-resistant.
Centering integrated in pallet. Inside diameter 25.

Application

For use on Chuck PM85 Precise. With chucking spigot ER-039839 on ProductionChuck 210 Combi, PowerChuck P, ITS Chuck 100 P and QuickChuck 100 P. To accommodate workpieces and fixtures for chip-cutting machines, EDM/WEDM centers and powder presses.

Fitting blanks

Through the pallet with M6 bolts or through the workpiece with M8 bolts.

Product Labels

• With central flushing clearance
• Corrosion-resistant material
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
• For Wire-EDM
