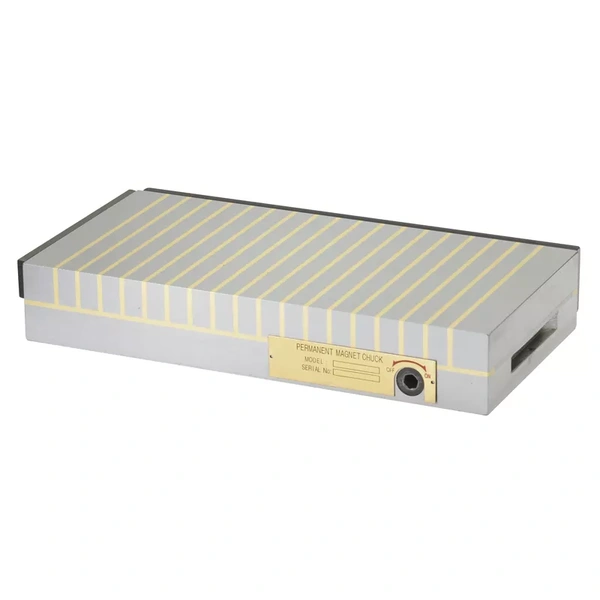

Powerful Permanent Magnetic Chuck (PMC P Series)

$1.00

Model: PMC P
Place of Origin: Zhejiang,China (Mainland)
Poles pitch: 12mm +3mm
Norminal clamping force: 150N/cm2
Processing: Milling Machine
Machining workpieces: Small, medium and large workpiece
Structure: Coolant&waterproof

9999 in stock

Description

Use:

1.Best suitable for heavy machining, such as milling and planning.

2.Used for small, medium and large workpieces.



Feature:

1.Permanent magnetic chuck with Nedymium magnets,stronger magnetic force and less remaining magnetism

2.Parrallel fine pole pitch:15 mm(12mm of steel+3mm of brass)

3.Nominal holding force:150N/cm2

4.Pole plate wearing limit:5mm

5.Magnetic field height: 12mm

6.coolant and water proof structure

7.parallelism, flatness and squareness 0.005mm/100mm

8.ON-OFF control by means of hand lever.In the OFF position, a weak opposing

field eases the removal of the workpiece

Pole pitch 15+4mm can be produced
