Description

ER-032388

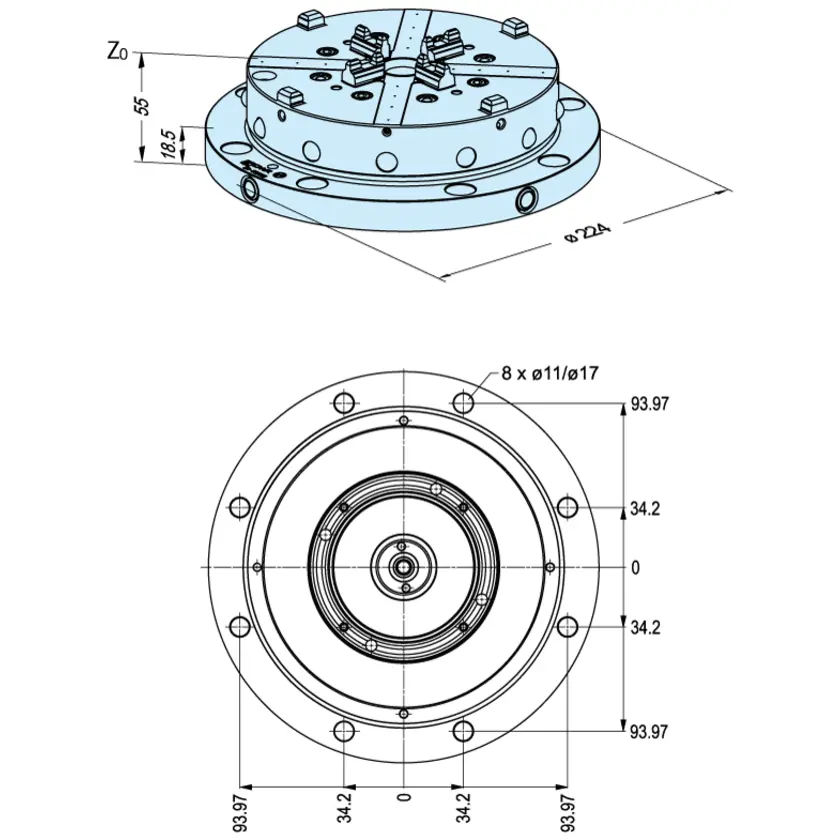

ProductionChuck 210 Combi

without base plate

Version

Chuck for high machining forces in chip-cutting operations. PC 210 with integrated PowerChuck P.

Application

On milling machines, lathes, grinding machines and EDM centers. To clamp pallets PC 210, ITS pallets diameter 148, diameter 115, ITS diameter 72 and 50 C holders.

Connections

2 air connections: on the sides and from below through customized base plate.

Operation

With air gun or control unit.

Note

Base plate must be customized.

Product Labels

• Operate with manual control unit
• Operate with electropneumatic control unit
• Suited for submerged operation
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
