Description

ER-099331

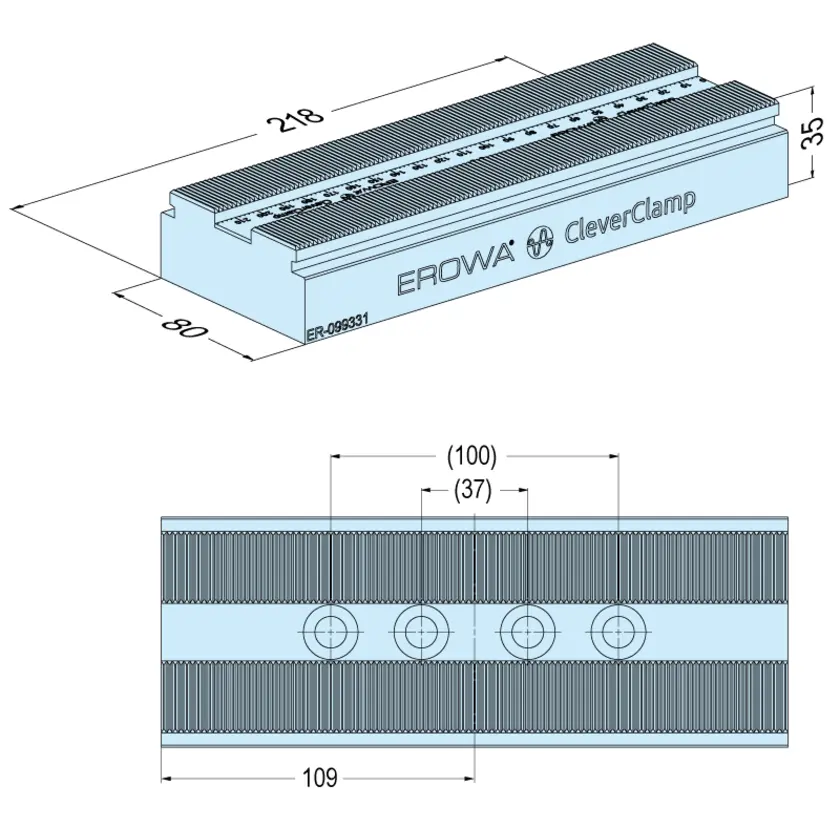

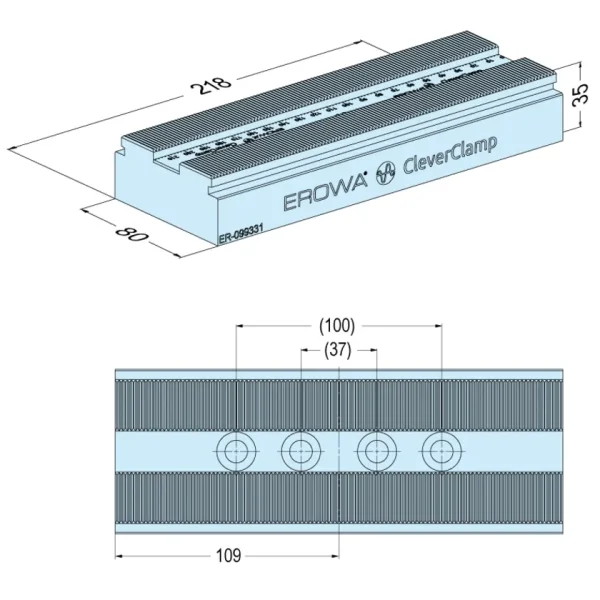

Rail 218 H35

CleverClamp

Version

Steel, hardened. Clamping element carrier, length 218mm, height 35mm, with 2mm positioning grid.

Application

Serves as a Basis to clamp workpieces with various CleverClamp clamping and stop elements.

To fit

To fit on grid plates R50, pallets, tombstones and machine tables. 4x M10 x35 socket head bolts.

Accessories

Clamping and stop elements, etc.

Note

Can be fitted directly to pallet P diameter 148 Inox (ER-041912).

Product Labels

• Manual operation
• For EDM sinking
• For chip-removing processes
