Description

ER-007612

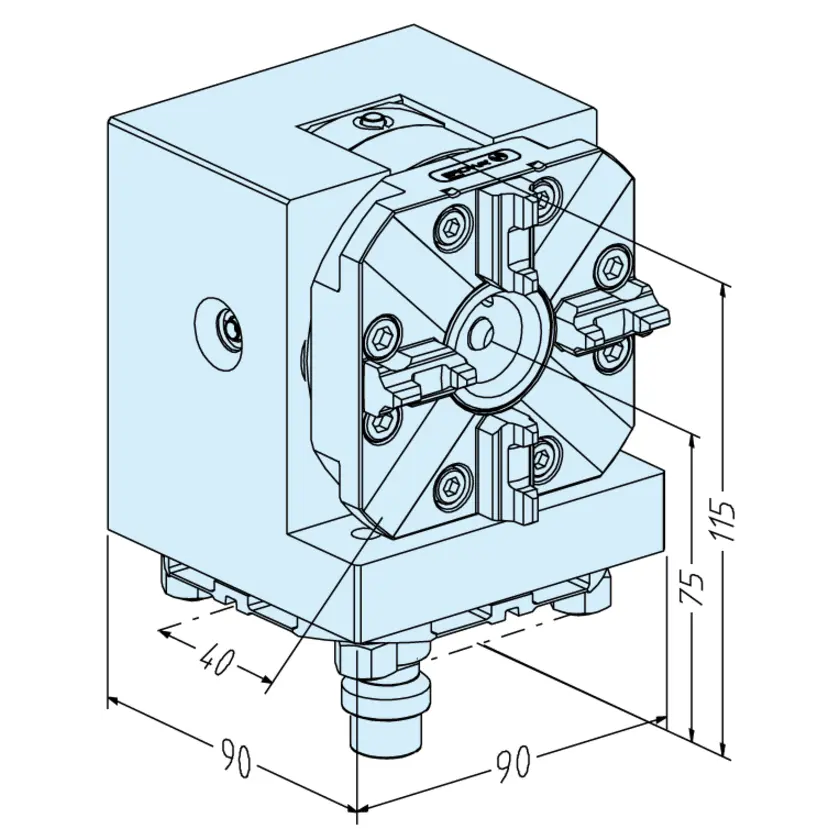

Rapid-action chuck NSF on angle plate

Version

Standard type on type G angle plate.
NFS = increased clamping power up to 7000 N.

Connections

Pneumatic valves on the side, flushing through
chucking spigot.

Application

To produce electrodes, and on EDM quill.

Note

To hold pallets diameter 115 / diameter 148, electrode holders, with the exception of pallets with a P-profile.

Product Labels

• Operate with compressed air jet
• Operate with manual valve
• With central flushing clearance
• For EDM sinking
• For chip-removing processes
