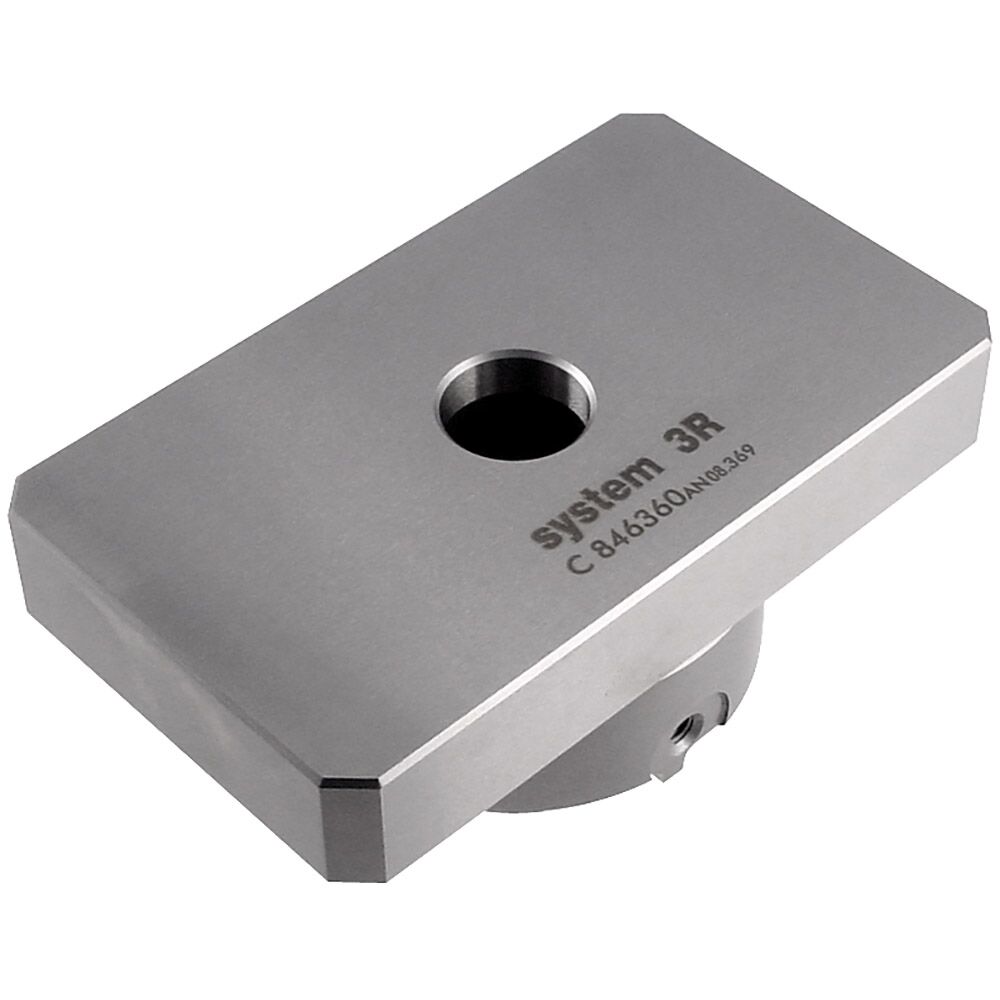

C846360 Reference pallet, GPS70 3R tooling fixture-China supplier

$0.05

For the axial and concentric XY alignment of the GPS70/120 chuck.

9999 in stock

SKU: C846360 Category:

Description

  • Material stainless steel, hardened
  • Height 47 mm
  • Construction: 2-piece, form-fitting design
  • Repetition accuracy of the centre bore 0.002 mm/0 degrees
  • Parallelism with system axis 0.003 mm/120 mm.
  • Adapted for automatic changing
  • Ready for code carrier fixture C960740.
