Description

ER-034359

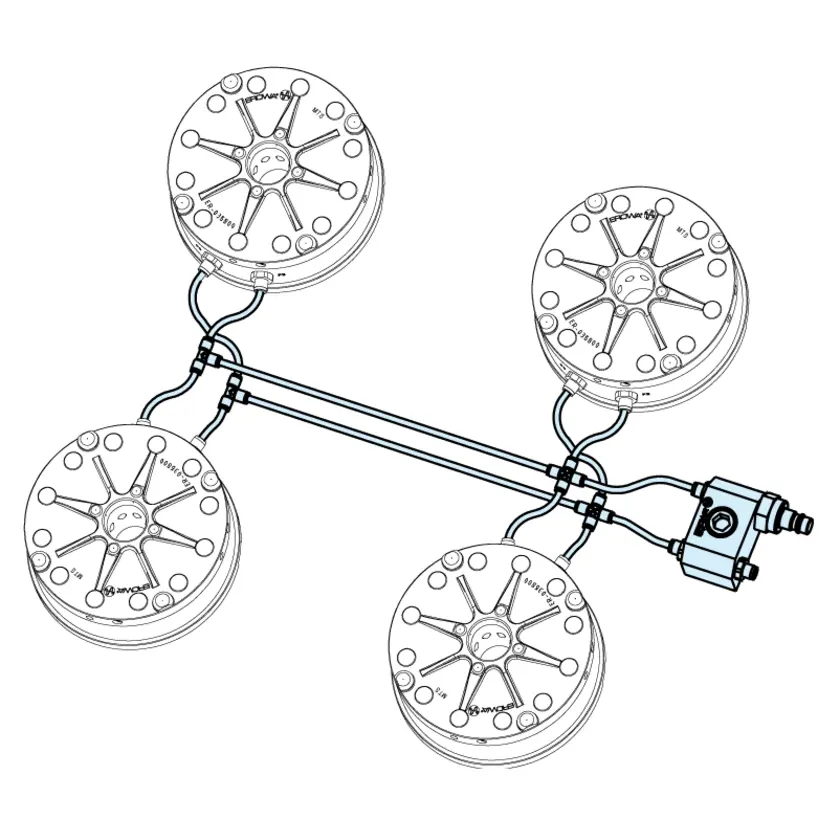

Tube set for MTS chuck 2/4-H

Application

All the necessary fittings for the hydraulic control of
2 or 4 MTS chucks. Max. operating pressure: 40 bar.

Version

2 Threaded T-connectors
2 Threaded cross connectors
3 Straight threaded connectors
24 Support sleeves
1 Connector block
8 m Tube diameter 4/2 yellow PA
8 m PMAFLEX corrugated pipe 1 Nipple 1/8 inch
(for pneumatic/hydraulic booster ER-C033497)

Mounting

According to instruction manual supplied.
