Description

FT-01792

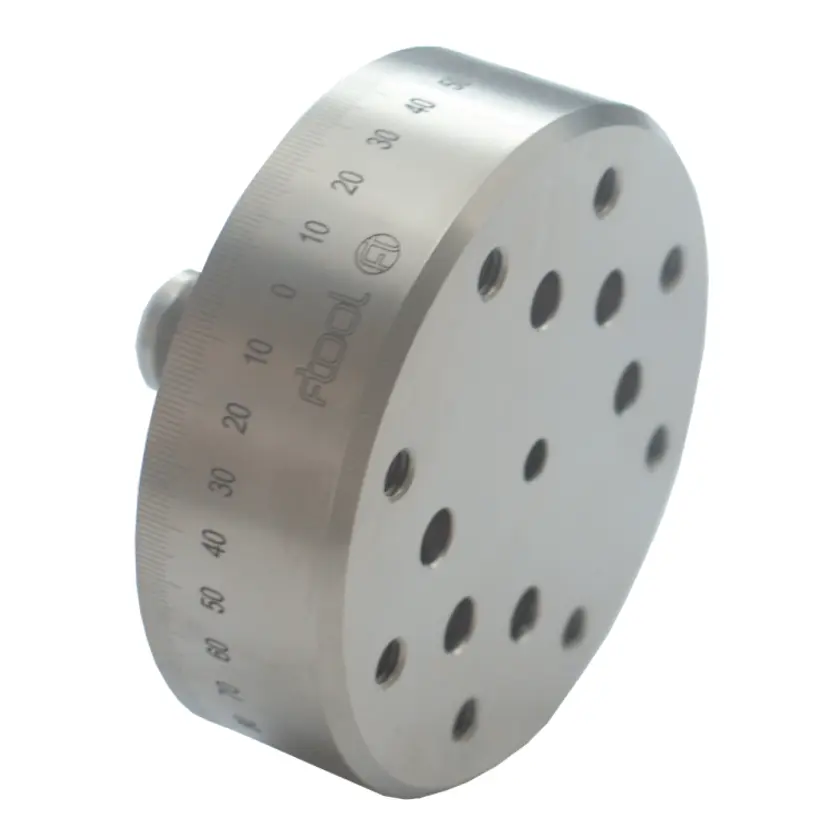

Universal index adapter plate 80

with graduation

Application

Universal adapter plate 80 with nonius-display to adapt the ER chuck 80P (FT 01043), collet chuck holder (FT 01580/FT 01581), electrodes or working pieces. Hole pattern: 8 x M6 reference circle 61 for ER chuck 80P & chuck 80 IF3R.

Hole pattern

For 6 x M6 circle diameter 40 mm (to adapt collet chuck holder, front spanner FT 01572 or electrodes respective working pieces).

Product Labels

• Manual operation
• Suited for submerged operation
• Corrosion-resistant material
• For EDM sinking
• For Wire-EDM
