Description

ER-139505

UPC 2.0 chuck 280 x 280

with ITS chuck 100 P

Version

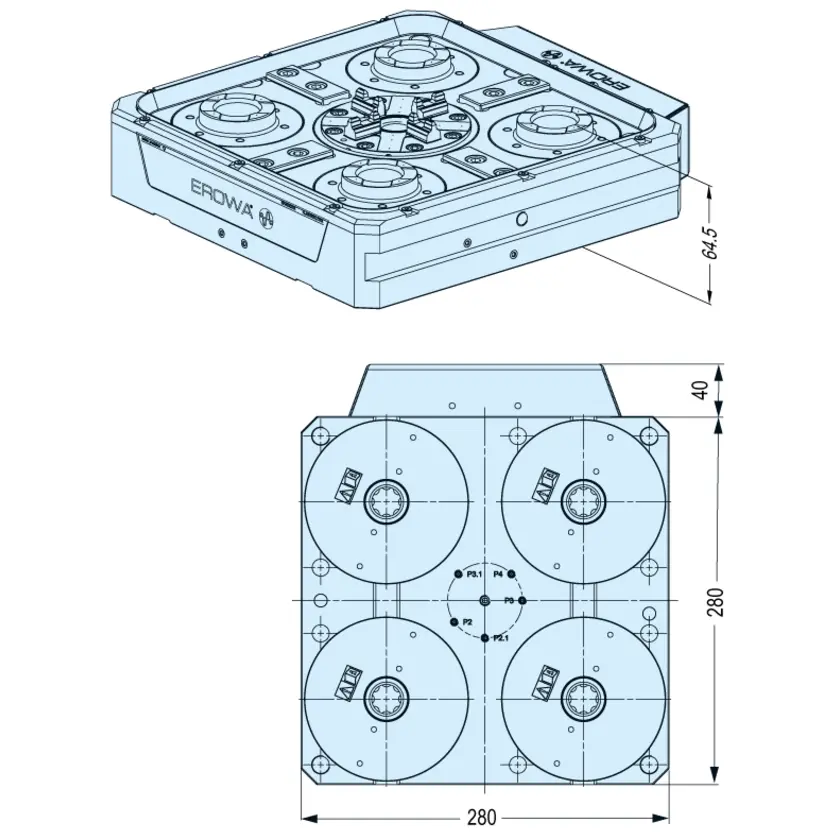

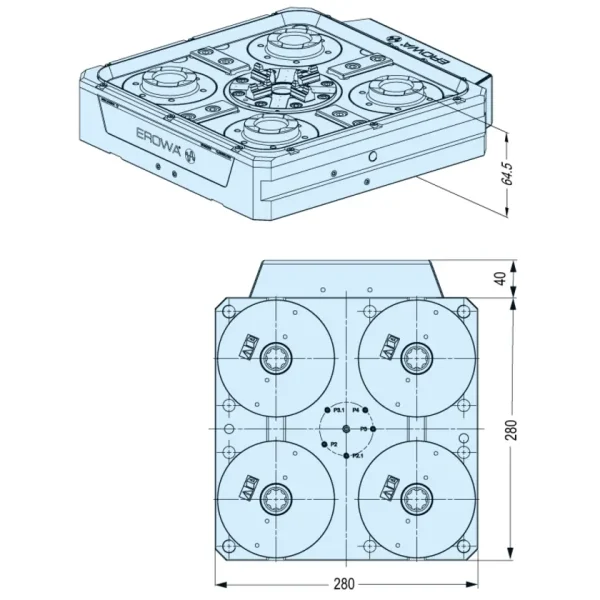

UPC 2.0 chuck with integrated ITS chuck 100 P, size 280 x 280 mm. With fixed fitting pattern on the underside.

Connections

6 connections (pneumatic), laterally and on the underside on pitch diameter57mm: for opening, cleaning /presence check, reclamping, cleaning the UPC centerings, as well as opening, cleaning / presence check of the ITS chuck 100 P.

Application

On milling, grinding, drilling, EDM and measuring machines. To accommodate UPC pallets, pallets diameter115, diameter148, electrode holders, etc.

To fit

Fitting borehole pattnern for 25mm/M12 grid, for star tables and machine tables with a T-slot distance of 50 mm.

Product Labels

• Operate with manual control unit
• Operate with electropneumatic control unit
• Suited for submerged operation
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
