Description

ER-139504

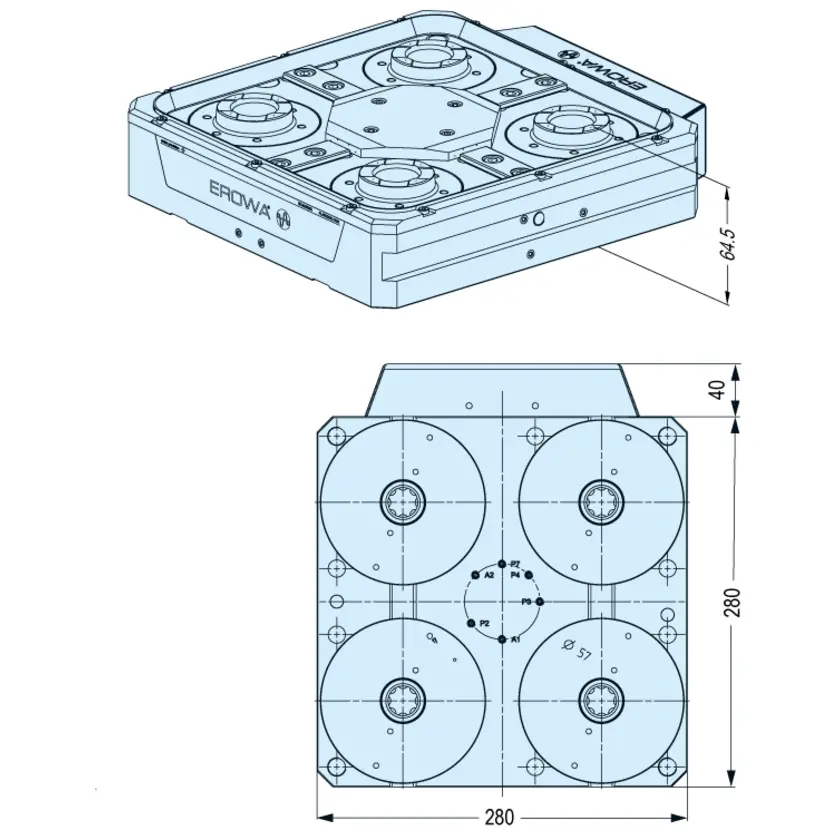

UPC 2.0 chuck 280 x 280

Version

UPC 2.0 chuck. size 280 x 280 mm. With fixed connection on the underside.

Connections

4 connections (pneumatic), laterally and on the underside on pitch diameter 5 mm: for opening, cleaning / presence check, reclamping, cleaning of UPC centerings.

Application

On milling, grinding, drilling, EDM and measuring machines. To accommodate UPC pallets.

To fit

Fitting borehole pattner for 25mm/M12 grid, for star tables and machine tables with a T-slot distance of 50 mm.

Product Labels

• Operate with manual control unit
• Operate with electropneumatic control unit
• Suited for submerged operation
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
