Description

ER-139500

UPC 2.0 chuck 320 x 300

Version

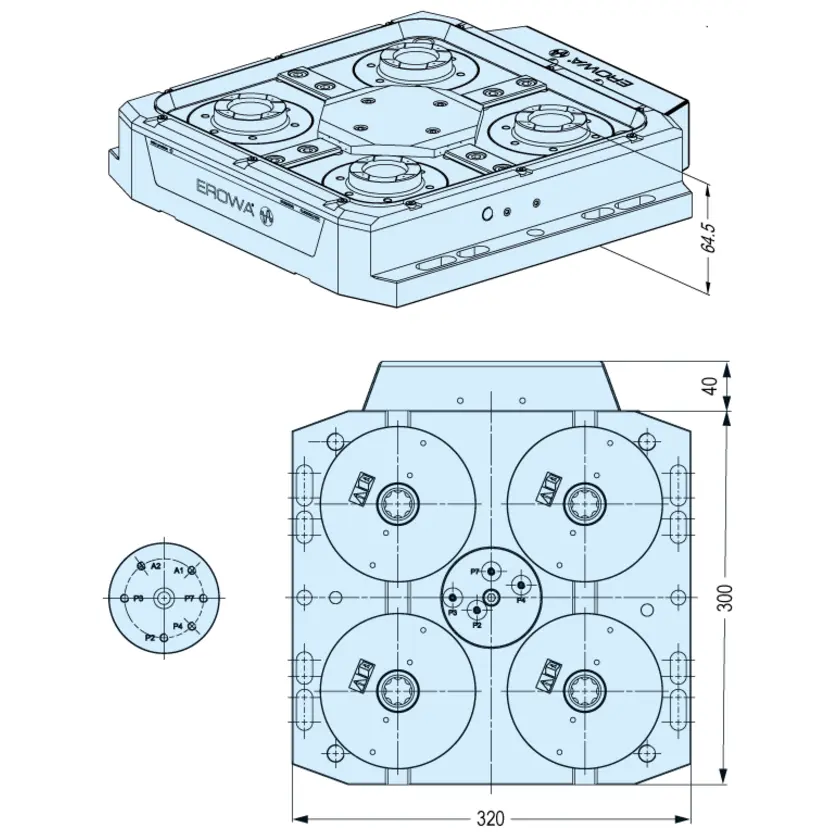

UPC 2.0 chuck, size 320 x 300 mm. Including borehole pattern adapter (fitted) and pitch diameter57mm adapter (not fitted).

Connections

4 connections (pneumatic), laterally and on the underside through adapter: for opening, cleaning / presence check, reclamping, cleaning the UPC centerings.

Option

Customer-specific adapter on request.

Application

On milling, grinding, drilling, EDM and measuring machines. To accommodate UPC pallets.

To fit

Fitting bore pattern 50mm/M12, star table and machine table with T-slot distances of 63, 80 and 100 mm.

Product Labels

• Operate with manual control unit
• Operate with electropneumatic control unit
• Suited for submerged operation
• Suited for automatic operation
• For EDM sinking
• For chip-removing processes
